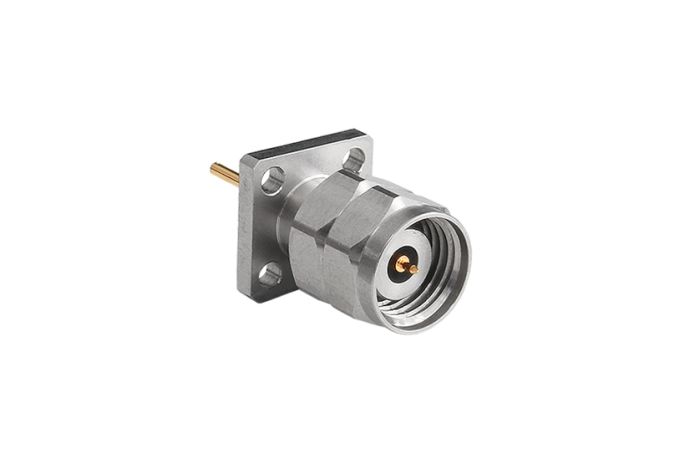

2.92mm Series Pin without Extended PTFE 4 Hole Flange

RF292A4WOEPTFE Series

  • Maximum Voltage: 250V
  • Temperature range: -40°C to +85°C
  • Frecuency range: 0GHz - 40GHz
  • VSWR: <1.30
  • Dielectric withstanding Voltage: >750V
  • Impedance: 50Ohm
  • Body Material: Stainless Steel Passivation
  • Contact Material: Beryllium Copper
  • Available with Extended PTFE
Product Downloads Product Certificates

Configure this product using product options below and find a distributor

Product Filter

Stainless Steel Passiva..

  • Body Material

  • Stainless Steel Passivation (12)

Function

  • Function

  • Female Flange Mount RF Connector (8)

  • Male Flange Mount RF Connector (4)

50Ohm

  • Impedance

  • 50Ohm (12)

+85°C

  • Max Operating Temperature

  • +85°C (12)

-40°C

  • Min Operating Temperature

  • -40°C (12)

1/4 36UNS 2A

  • Thread Size

  • 1/4 36UNS 2A (12)

250V

  • Voltage Max

  • 250V (12)

Body Length

  • Body Length

  • 9.50mm (8)

  • 12.90mm (4)

Mount Hole Length

  • Mount Hole Length

  • 12.70mm (6)

  • 9.50mm (6)

Mount Hole Distance

  • Mount Hole Distance

  • 6.35mm (6)

  • 8.60mm (6)

Beryllium Copper

  • Contact Pin Material

  • Beryllium Copper (12)

Insulator

  • Insulator

  • UNFILLED ULTEM 1000/PEI (8)

  • ULTEM 1000 (4)

>5000MOhm

  • Insulator Resistance

  • >5000MOhm (12)

0GHz

  • Min Operating Frecuency

  • 0GHz (12)

40GHz

  • Max Operating Frecuency

  • 40GHz (12)

Pin Diameter

  • Pin Diameter

  • 0.64mm (8)

  • 0.30mm (2)

  • 0.75mm (2)

Pin Length

  • Pin Length

  • 10.92mm (4)

  • 6.84mm (4)

  • 30.00mm (2)

  • 7.00mm (2)

VSWR

  • VSWR

  • <1.30 (8)

  • <1.25 (4)

>750V

  • Dielectric Withstanding Voltage

  • >750V (12)

>20N

  • Centre Contact Retention Force

  • >20N (12)

0.80Nm

  • Min Coupling Torque

  • 0.80Nm (12)

1.10Nm

  • Min Coupling Torque

  • 1.10Nm (12)

>500 cycles

  • Durability

  • >500 cycles (12)

Category

  • Category

  • 436 (12)

  • 696 (12)

  • 863 (12)

  • 866 (12)

Filtered Selections:

(Reset All Filter Selections)

12 Products Match Your Filter Selections
