Home / 2.92mm Plug Straight 4 Hole Flange RF Connector

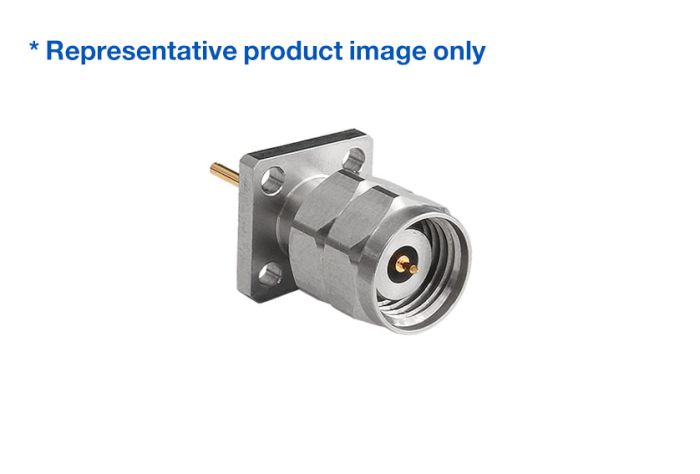

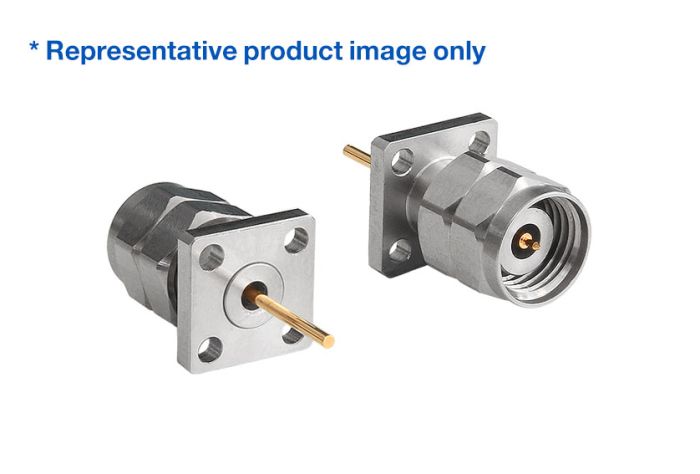

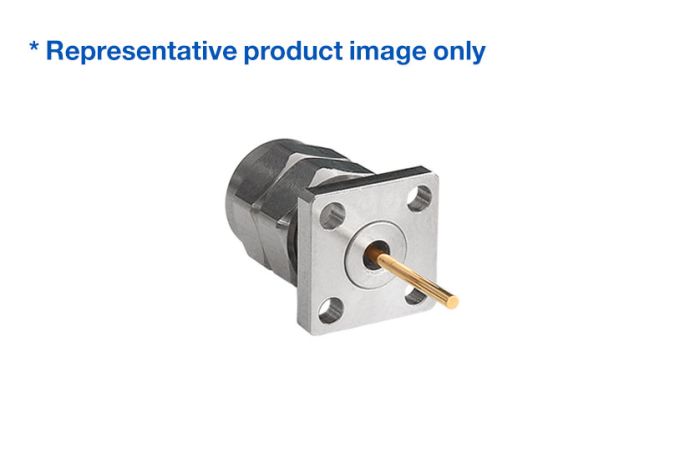

2.92mm Plug Straight 4 Hole Flange RF Connector
RF292A4PCCDP
2.92mm Series
- 2.92mm Plug Straight 4 Hole Flange RF Connector
- Maximum Voltage: 250V
- Temperature range: -40°C to +85°C
- Frecuency range: 0GHz - 40GHz
- VSWR: <1.25
- Dielectric withstanding Voltage: >750V
- Impedance: 50Ohm
- Body Material: Stainless Steel Passivation
- Contact Material: Beryllium Copper
Custom Bulgin Product Enquiry Form
Searching please wait..
Search for a part number above
Sorry, there is no stock currently available within our distribution network.
Please contact us directly with your requirements.
Do you have a question or a project enquiry that you'd like to talk to us about?
Other Products In This Series:
