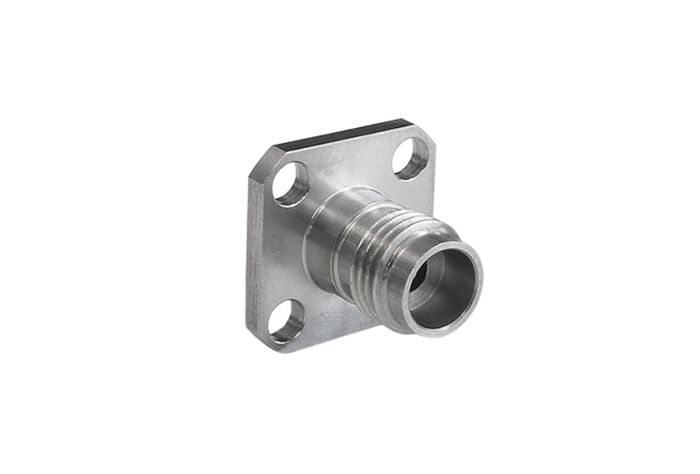

2.40mm Series Pin with Extended PTFE 4 Hole Flange

RF240A4WEPTFE Series

  • Maximum Voltage: 150V
  • Temperature range: -40°C to +85°C
  • Frecuency range: 0GHz - 50GHz
  • VSWR: <1.30
  • Dielectric withstanding Voltage: >500V
  • Impedance: 50Ohm
  • Body Material: Stainless Steel Passivation
  • Contact Material: Beryllium Copper
  • Available without Extended PTFE
Product Downloads Product Certificates

Configure this product using product options below and find a distributor

Product Filter

Stainless Steel Passiva..

  • Body Material

  • Stainless Steel Passivation (6)

Female Flange Mount RF ..

  • Function

  • Female Flange Mount RF Connector (6)

50Ohm

  • Impedance

  • 50Ohm (6)

+85°C

  • Max Operating Temperature

  • +85°C (6)

-40°C

  • Min Operating Temperature

  • -40°C (6)

150V

  • Voltage Max

  • 150V (6)

Body Length

  • Body Length

  • 10.80mm (4)

  • 10.70mm (2)

12.70mm

  • Mount Hole Length

  • 12.70mm (6)

8.60mm

  • Mount Hole Distance

  • 8.60mm (6)

Beryllium Copper

  • Contact Pin Material

  • Beryllium Copper (6)

UNFILLED ULTEM 1000/PEI

  • Insulator

  • UNFILLED ULTEM 1000/PEI (6)

>5000MOhm

  • Insulator Resistance

  • >5000MOhm (6)

0GHz

  • Min Operating Frecuency

  • 0GHz (6)

50GHz

  • Max Operating Frecuency

  • 50GHz (6)

Pin Diameter

  • Pin Diameter

  • 0.30mm (4)

  • 0.60mm (2)

Pin Length

  • Pin Length

  • 1.50mm (4)

  • 1.27mm (1)

  • 1.90mm (1)

PTFE Diameter

  • PTFE Diameter

  • 1.67mm (2)

  • 2.00mm (2)

  • 4.00mm (2)

PTFE Length

  • PTFE Length

  • 1.40mm (2)

  • 3.00mm (2)

  • 5.10mm (1)

  • 6.35mm (1)

<1.30

  • VSWR

  • <1.30 (6)

>500V

  • Dielectric Withstanding Voltage

  • >500V (6)

>20N

  • Centre Contact Retention Force

  • >20N (6)

0.80Nm

  • Min Coupling Torque

  • 0.80Nm (6)

1.10Nm

  • Min Coupling Torque

  • 1.10Nm (6)

>500 cycles

  • Durability

  • >500 cycles (6)

Category

  • Category

  • 436 (6)

  • 696 (6)

  • 863 (6)

  • 865 (6)

Filtered Selections:

(Reset All Filter Selections)

6 Products Match Your Filter Selections

RF240A4JCCADGA

RF240A4JCCADGA Datasheet
Add To Cart
Find a Distributor

RF240A4JCCADGB

RF240A4JCCADGB Datasheet
Add To Cart
Find a Distributor

RF240A4JCCADAA

RF240A4JCCADAA Datasheet
Add To Cart
Find a Distributor

RF240A4JCCADAB

RF240A4JCCADAB Datasheet
Add To Cart
Find a Distributor

RF240A4JCCCCBG

RF240A4JCCCCBG Datasheet
Add To Cart
Find a Distributor

RF240A4JCCCEBF

RF240A4JCCCEBF Datasheet
Add To Cart
Find a Distributor
6 Item(s)
