BZH02/A0130/12

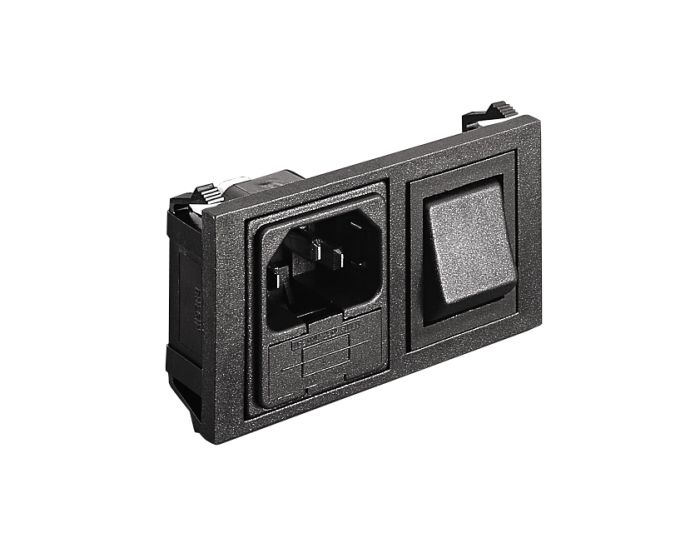

  • Horizontal Power Entry Module 62.7mm/74.5mm
  • C14 Cold Condition Inlet with integral fuseholder(s) depending on part code:
  • Part codes prefixed BZH01, BZH02: PF0011 Single Fused Inlet
  • Part codes prefixed BZH15, BZH16: PF0033 Twin Fused Inlet
  • Choice of Termination depending on part code:
  • Part codes prefixed BZH01, BZH15: 6.3mm Tab
  • Part codes prefixed BZH02, BZH16: 2.8mm Tab
  • Choice of mains filter depending on part code:
  • Part codes containing /Z0000 are unfiltered
  • Choice of mains filter options (part codes containing codes starting /A)
  • Choice of many other options as specified by individual part code, including indicators, illuminated switches, switch markings, etc
