Rear Panel Mount Connector

PXP4013 Range

    • Rear Panel Mount Connector
    • Sealed to IP66, IP68, IP69K when mated with compatible connector
    • Single hole fixing
    • Pin or Socket
    • 2, 3, 4, 6, 8, 10 or 12 Contact
    • Choice of:
    • Cable connector version uses Crimp or Solder Contacts (supplied separately; use 13A/10A for 2, 3 Contact, 8A/5A for 4, 6, 8 Contact, 3A/3A for 10, 12 Contact), contact insertion and crimp tools available separately

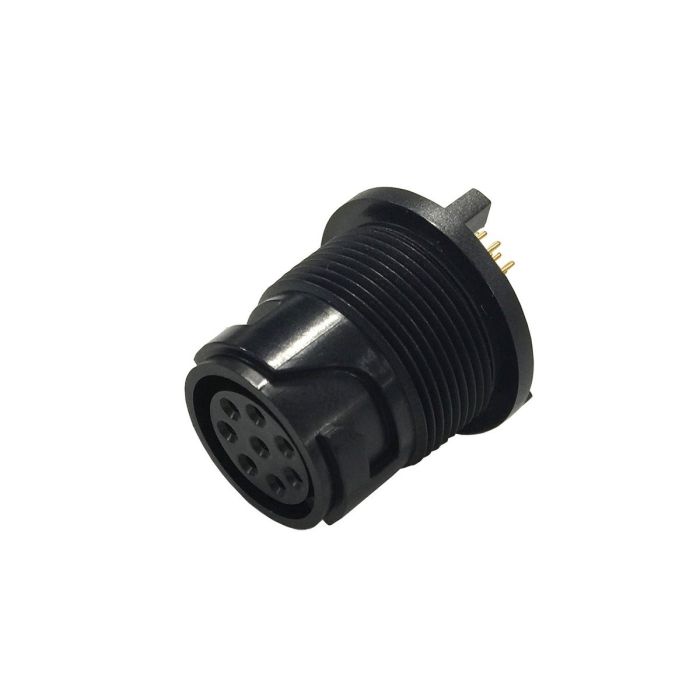

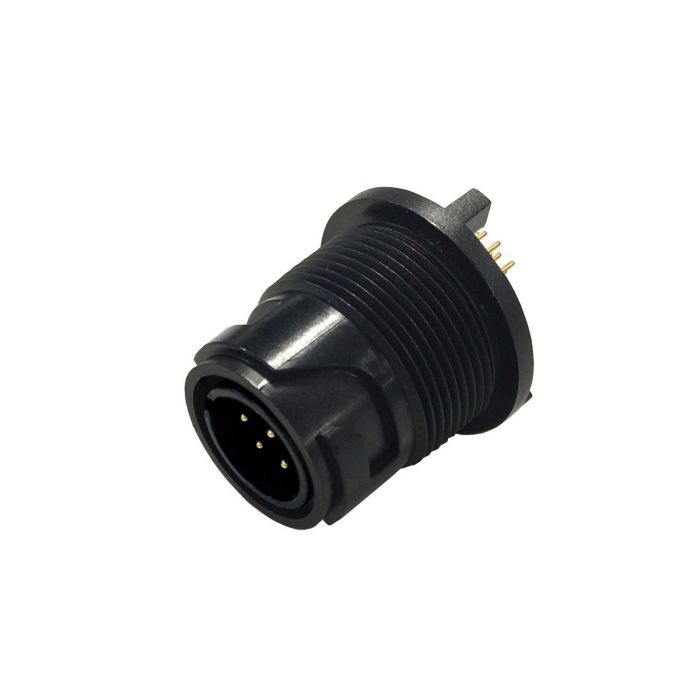

    • PCB mount version (part codes suffixed /PC) use straight PCB spills and are supplied complete with pre-loaded gold plated contacts
    • PXP4083 Sealing Cap available separately to maintain IP rating of unmated connectors
    • Mate with Flex Cable Connectors PXP4010, PXP4011
