Range of Round Rocker Switches

    • Range of Round Rocker Switches
    • Single Contact, Double Contact, Illuminated and Indicator Only versions all in same body size
    • Splash resistant rocker versions available
    • ENEC, UL, CSA approved. Approvals and ratings can vary with function - see technical data for details
    • 4.8 x 0.8 QC Termination
    • Choice of:
    • Body colour: Black, White
    • Actuator:

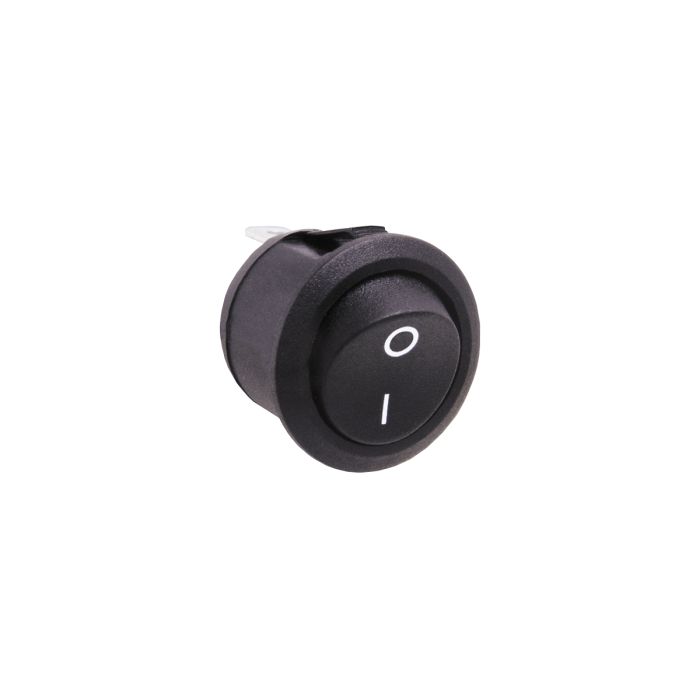

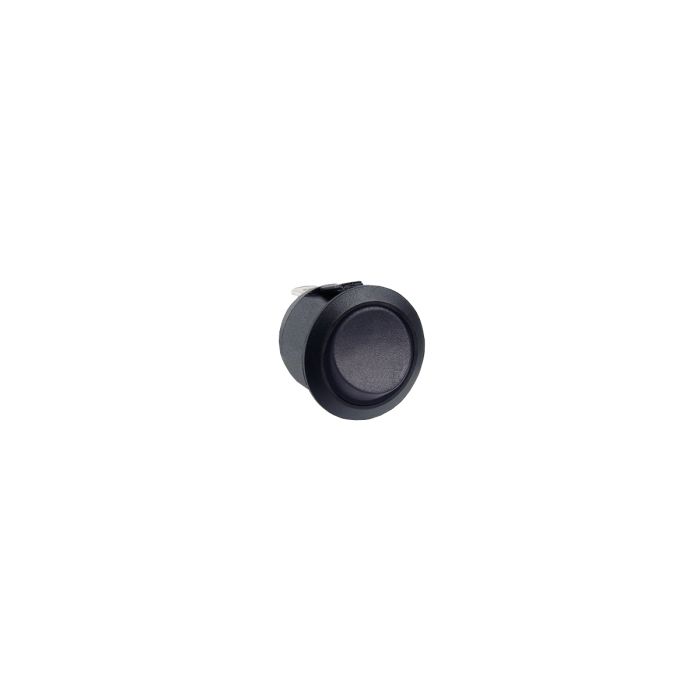

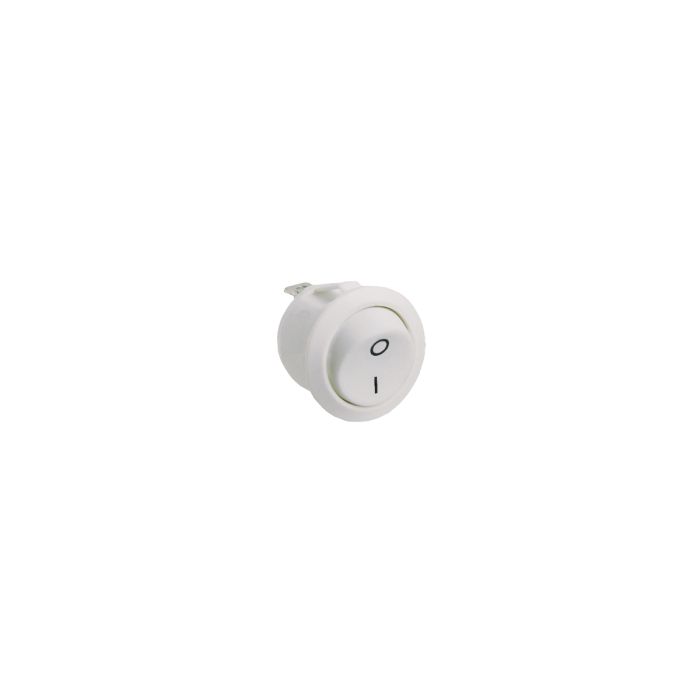

    • Round Rocker available in Black, White
    • Two Colour Round Rocker (for On Off versions only) available in Black, White with choice of Red, White insert
    • Both above Rocker types available unprinted, or printed in Black or White with a choice of Legend

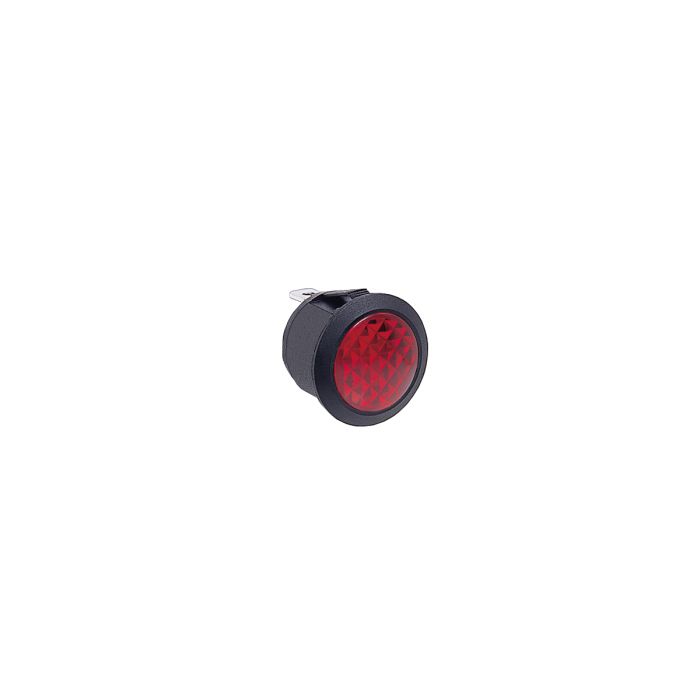

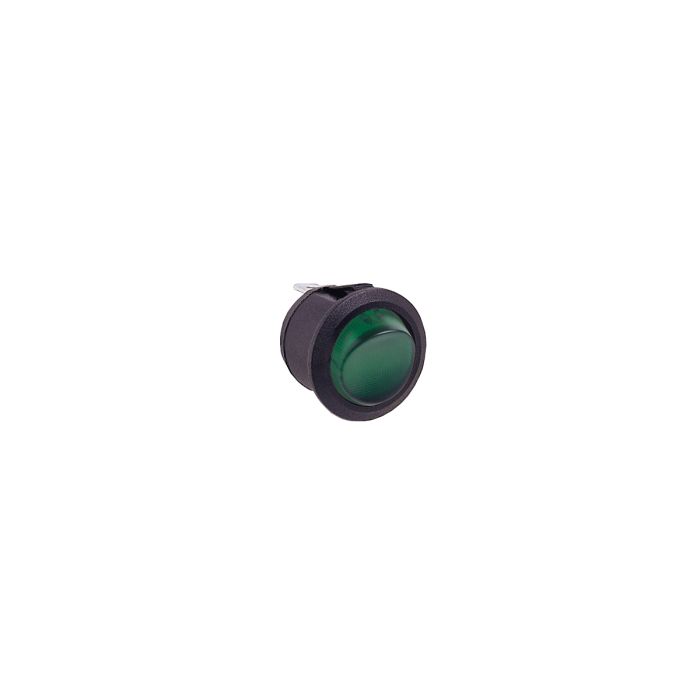

    • Round Rocker with Illuminated Dot, Round Illuminated Rocker (both available for On Off versions only) or Indicator Only with Illumination choice of 12V or 24V Red, Amber, Green, Blue LED or 125V or 250V Red, Amber, Green Neon (other illumination voltages available)

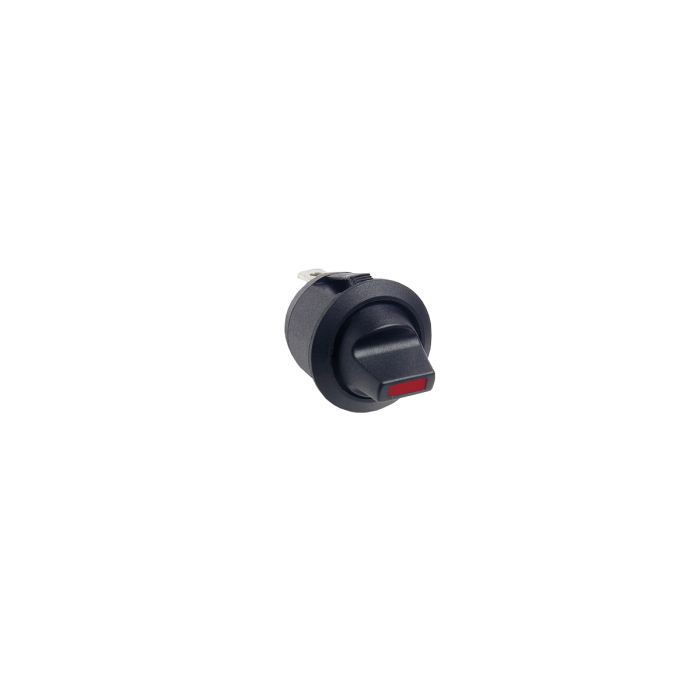

    • Illuminated black Paddle (tip lit) with Isolated Red, Amber, Green, Blue LED 12V or 24V operation
    • Also available: L188 snap on protective cover (not suitable for Paddle actuator versions)
    • For details of the full range of Legends or information about custom body, rocker and Legend colours for large orders, please contact Sales
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Function



    Select

    1

    R13 - Switch

    R9 - Indicator Only

    Must select Indicator Only (92B) Body

  • Body/Contacts



    Select

    2

    112 - Single Contact Round Snap Fit To Panel Mount

    135 - Single Contact Square Bezel Screw Mount

    208 - Single Contact Round Snap Fit Short Body

    Must select ON OFF (A, A2, B, B2) Switching. If Illuminated Switching (B, B2) selected, must select Neon (2, 3) Illumination

    244 - Double Contact Round Snap Fit To Panel Mount

    92B - Indicator Only Round Snap Fit To Panel Mount

    Must select when Indicator (R9) Function selected

  • Switching



    Select

    3

    A - ON OFF

    A2 - ON OFF Two Colour Rocker

    Must select Insert Colour

    B - ON OFF Illuminated

    Must select Neon (2, 3) Illumination

    B2 - ON OFF Illuminated Dot

    Must select Neon (2, 3) Illumination

    C - ON ON

    D - ON OFF ON

    E - ON OFF (Momentary OFF)

    F - ON OFF (Momentary ON)

    G - ON ON (Momentary 1 Side)

    H - ON OFF ON (Momentary 1 Side)

    I - ON OFF ON (Momentary 2 Sides)

    LP - ON OFF Illuminated Paddle Tip

    Tip of black paddle lit by isolated LED Illumination. Must select LED (5, 6) Illumination

    Indicator Only (not switched)

    Must select when Indicator Only (R9) Function selected. Must select Neon (2, 3) Illumination

  • Body Colour



    Select

    4

    B - Black

    W - White

  • Actuator Colour



    Select

    5

    Options available for non-Illuminated Switching (A, A2, C, D, E, F, G, H, I) selections only

    B - Black

    W - White

    Options available for Illuminated Switching (B, B2, LP) selections and R9 Indicator Function selection only

    A - Amber Illuminated

    BL - Blue Illuminated

    Only available when LED Illumination (5, 6) selected

    G - Green Illuminated

    R - Red Illuminated

  • Insert Colour



    Select

    6

    Select (Not Applicable) unless Two Colour Rocker (A2) Switching selected when Insert Colour must be selected

    (Not Applicable)

    Must select if Two Colour Rocker (A2) Switching not selected

    R - Red

    Required when Two Colour Rocker (A2) Switching selected

    W - White

    Required when Two Colour Rocker (A2) Switching selected

  • Illumination



    Select

    7

    Select (Not Applicable) unless Illuminated Switching (B, B2, LP) or R9 Indicator Function selected when Illumination must be selected

    (Not Applicable)

    Must select when Non-Illuminated Switching (A, A2, C, D, E, F, G, H, I) selected

    Neon options only available when Illuminated (B), Illuminated Dot (B2) Switching selected or R9 Indicator Function selected

    2 - 125V Neon

    3 - 250V Neon

    LED options only available when Illuminated Paddle Tip (LP) Switching selected

    5 - 12VDC LED

    6 - 24VDC LED

  • Legend



    Select

    8

    Select Blank/Not Applicable if Illuminated Switching (B, B2, LP) or R9 Indicator Function selected, otherwise Legend can optionally be selected

    Blank/Not Applicable

    No Legend required, or not available for selected Switching

    076 - CL076 - O I Vertical

    Must select Legend Colour

    080 - CL080 - O I Horizontal

    Must select Legend Colour

  • Legend Colour



    Select

    9

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    W - White

  • Cover



    Select

    10

    None/Not Applicable

    No cover required or no cover available for selected Switching

    L188 - Snap On Cover

    Protective cover option. Not available when Illuminated Paddle Tip (LP) Switching selected
