8.0mm Panel Cut Out / 7.5mm Bezel / LED, Neon or Filament Lamp

2950 / 2951 Series

    • Termination: Wire Leads
    • Choice of:
    • Illumination type and operating voltage:
    • Neon: 100V-130V, 200V-250V
    • LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC (versions for other working voltages available - contact Sales for details)
    • Filament: 6V, 12V-14V, 24V-28V
    • Lens profile: Short (2950 Series), Tall (2951 Series)
    • Lens colour:
    • Neon, Filament: Red, Amber, Green, Clear. Blue also available to special order - contact Sales for details
    • LED: Red, Yellow, Green, White, Blue
    • Chrome Plated Brass Bezel standard for 2951 Series, optional on 2950 Series
    • Approvals:
    • 2950 - Neon: UL, CSA, KEMA-KEUR. LED AC operation: CSA, KEMA-KEUR. Filament: KEMA-KEUR
    • 2951 - Neon: UL, CSA. LED DC operation, Filament: KEMA-KEUR. LED AC operation: CSA, KEMA-KEUR
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    L - Wire Leads

    Must select

  • Type



    Select

    2

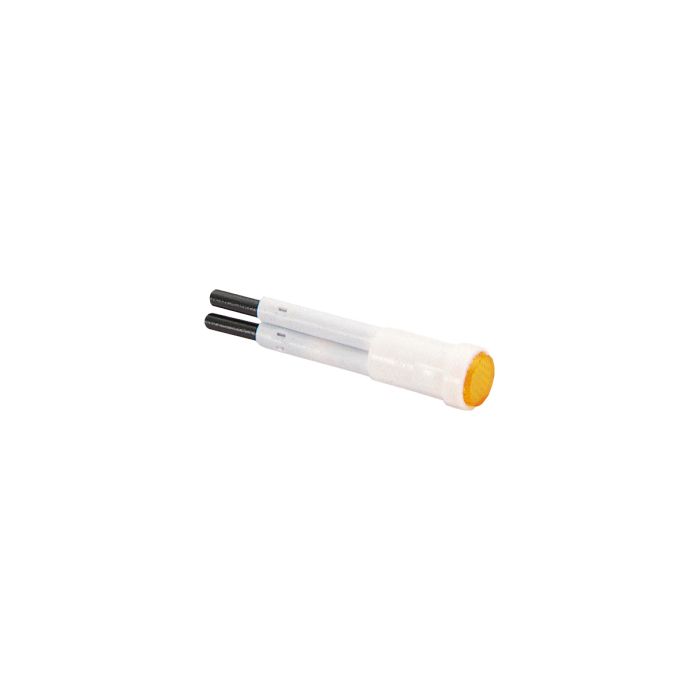

    2950 - 7.5mm Round 3.9mm Deep Lens

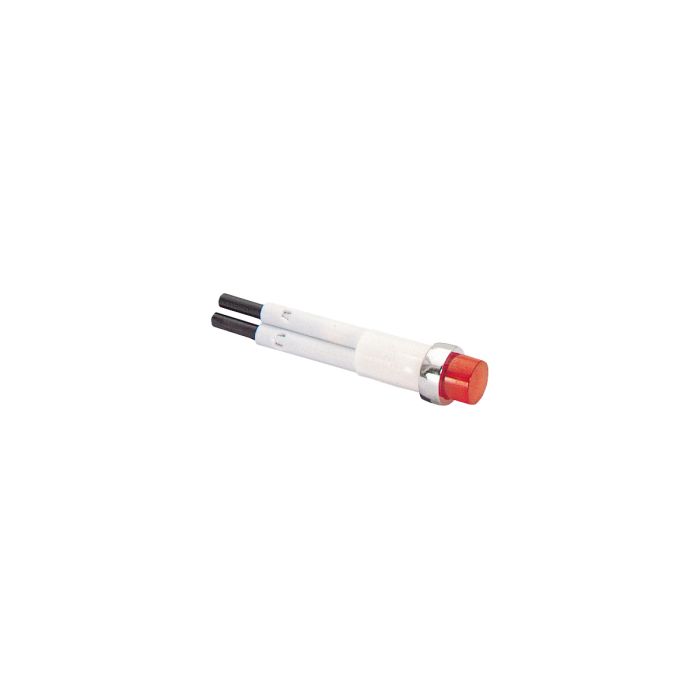

    2951 - 7.5mm Round 8.5mm Deep Lens

  • Illumination



    Select

    3

    F - Filament

    L - Low Voltage DC LED

    M - Mains Voltage AC LED

    N - Neon

  • Colour



    Select

    4

    Options available for all Illumination selections

    B - Blue

    Available for all LED (L, M) Illumination selections, available to special order for Neon (N) or Filament (F) Illumination selections - contact Sales for details

    G - Green

    R - Red

    Options available for LED (L, M) Illumination selections only

    W - White

    Y - Yellow

    Options available for Neon (N) or Filament (F) Illumination selections only

    A - Amber

    C - Clear

  • Voltage



    Select

    5

    Options available for Filament (F) Illumination selection only

    7 - Filament 12VDC-14VDC

    8 - Filament 24VDC-28VDC

    Options available for Neon (N) Illumination selection only

    2 - Neon 125V

    3 - Neon 250V

    Options available for Low Voltage DC LED (L) Illumination selection only

    1 - LED Only (No Series Resistor)

    2VDC-2.2VDC working voltage. Use appropriate external circuit for desired operating voltage

    4 - LED 6VDC

    5 - LED 12VDC

    6 - LED 24VDC

    Must select when Mains Voltage AC LED (M) Illumination selected

    9 - LED 125VAC-250VAC

  • Bezel



    Select

    6

    No Bezel/Not Applicable

    Select if Chrome Bezel not required when 7.5mm Round 3.9mm Deep Lens (2950) Type selected. Cannot select when 7.5mm Round 8.5mm Deep Lens (2951) Type selected

    C - Chrome Bezel

    Select if Chrome Bezel option required when 7.5mm Round 3.9mm Deep Lens (2950) Type selected. Must select when 7.5mm Round 8.5mm Deep Lens (2951) Type selected
