Mini Buccaneer Connector Casing

PX0800 / PX0801 / PX0802 / PX0803 / PX0804 / PX0805 Range

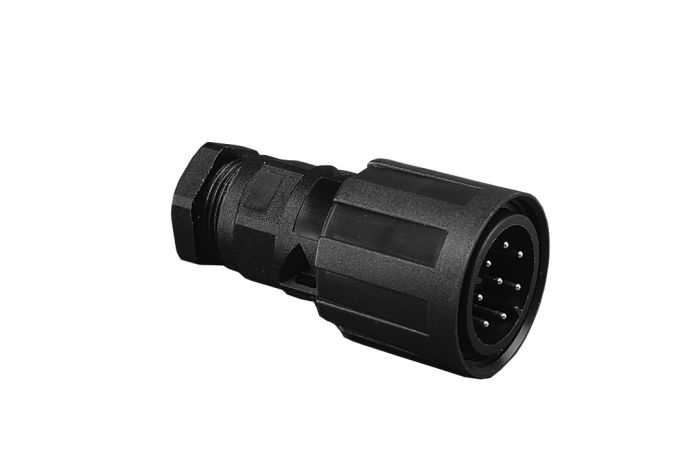

    • PX0800 Flexible Cable Connectors Casings: Designed for flexible cabling. Mate with PX0801 Inline Cable Connectors or PX0802-05 Panel Mount Connectors. Choose your desired cable acceptance diameter (ranging from 3.5mm to 9mm, see individual part codes for specifics).

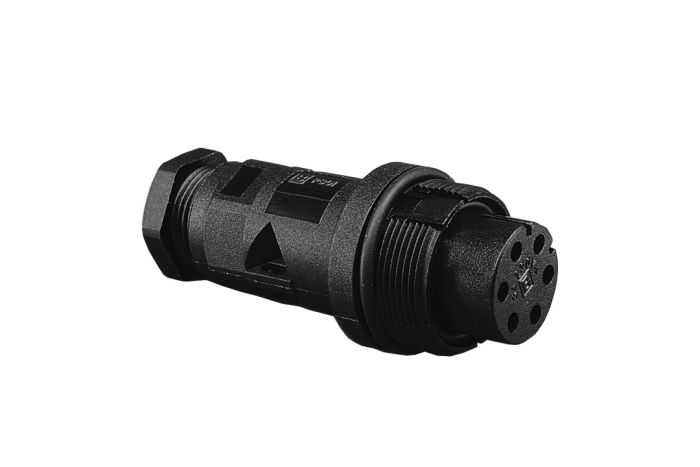

    • PX0801 Inline Cable Connectors Casings: For creating inline cable connections. Mate with PX0800 Flexible Cable Connectors. Select your cable acceptance diameter.

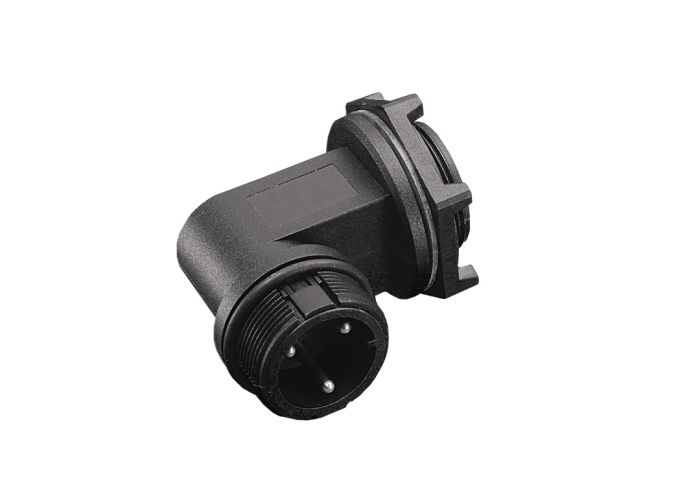

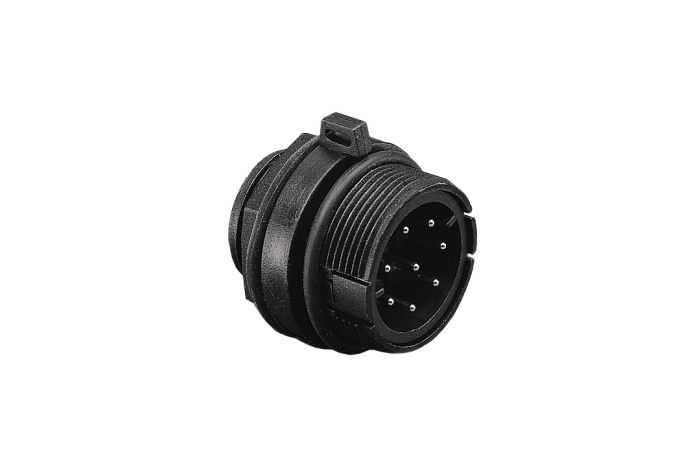

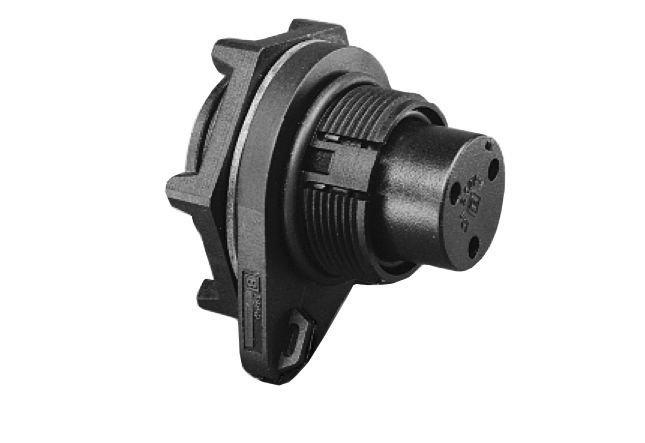

    • PX0802, PX0803, PX0804, PX0805 Panel Mount Connectors Casings: For mounting connectors to panels. Mate with PX0800 Flexible Cable Connectors.



    • Screw Terminals: Available as separate inserts in 2, 3, 4, and 6 contact configurations (pin or socket).
    • Solder/Crimp Contacts: Requires separate contact carriers (3 or 8 contacts), contact pins or sockets, and polarizing/blanking pins. Contact insertion and crimping tools are also sold separately.
    • BNC Connectors: Available as separate 50 Ohm or 75 Ohm inserts (plug or socket) for all connector body styles except PX0803.



    • Cable Glands (PX0812): A range of cable glands is available to accommodate various cable sizes.
    • Sealing Caps: Maintain the IP68 rating when connectors are unmated. PX0811 fits PX0800 Flexible Cable Connectors, while PX0810 fits all other connectors in the PX08 Mini Series.
