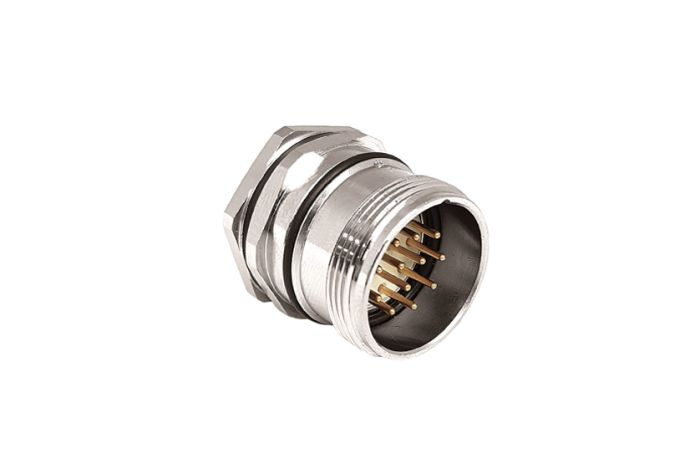

Front Panel Mount Connector / Male

PXMBNI23FPM Series

  • M23 Series Panel Mount Connectors
  • Water and dustproof to IP67 when mated with compatible connector
  • A Code
  • Front Panel Mount
  • 12, 19 Contact
  • Solder Terminals
  • Mate with M23 Series Inline Body and Flex Body Connectors, depending on part code

Configure this product using product options below and find a distributor

Product Filter

Brass - Nickel Plated

  • Body Material
  • Brass - Nickel Plated (2)

Plug Contact

  • Contact Type
  • Plug Contact (2)

Screw

  • Coupling Type
  • Screw (2)

26mm

  • Diameter Over Coupling Ring Mm
  • 26mm (2)

Front Panel Mount Conne..

  • Function
  • Front Panel Mount Connector (2)

M20

  • M12 Series Mounting Nut
  • M20 (2)

+80°C

  • Max Operating Temperature
  • +80°C (2)

-25°C

  • Min Operating Temperature
  • -25°C (2)

Number Of Contacts

  • Number Of Contacts
  • 12 Contacts (1)
  • 19 Contacts (1)

A Code

  • Pin Layout Code
  • A Code (2)

M23 x 1

  • Thread Size
  • M23 x 1 (2)

Current Max

  • 8A (2)

IP Rating

  • IP67 (2)

Voltage Max

  • 200V (2)

436

  • Category
  • 436 (2)

Filtered Selections:

2 Products Match Your Filter Selections

2 Item(s)
