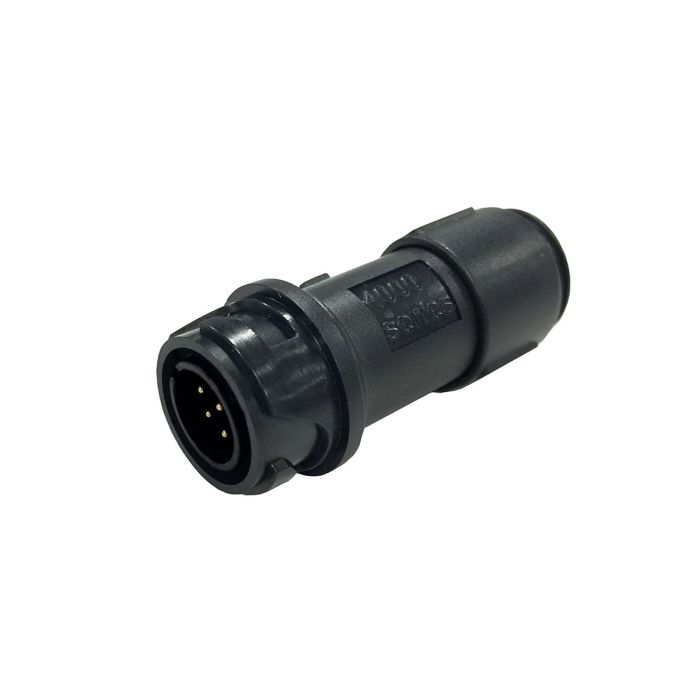

Inline Cable Connector

PXP4011 Range

    • Inline Cable Connector
    • Sealed to IP66, IP68, IP69K when mated with compatible connector
    • Pin or Socket
    • 2, 3, 4, 6, 8, 10 or 12 Contact
    • Crimp or Solder Contacts available (supplied separately; use 13A/10A for 2, 3 Contact, 8A/5A for 4, 6, 8 Contact, 3A/3A for 10, 12 Contact)
    • Contact insertion and crimp tools available (supplied separately)
    • Choice of cable acceptance 3mm-7mm depending on part code; supplied with Cable Gland and Collet colour coded by size, Cable Glands and Collets also available separately
    • PXP4082 Sealing Cap available separately to maintain IP rating of unmated connectors
    • Mate with Flex Connector PXP4010
