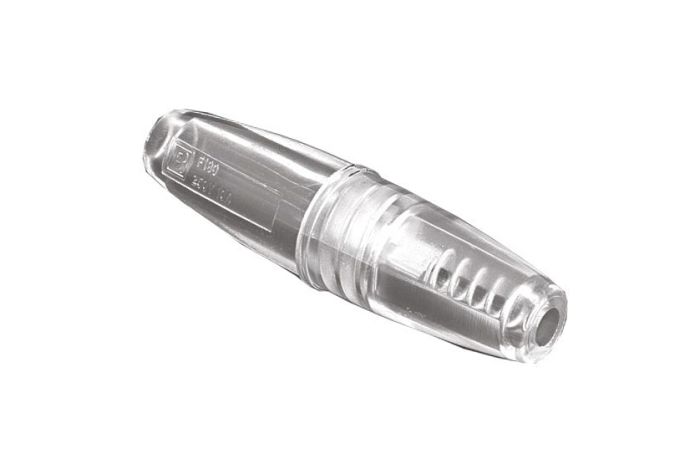

PC1 Inline 5x20mm & 6.3x25/32mm 10A Fuseholder

FX0180 / 185 / 280 / 285 / 380 / 385 Series

    • Protection Category PC1 In-Line Fuse Holders
    • Screw Termination
    • Part codes prefixed FX0385, FX0285, FX0185 are IP66 Sealed
    • Choice of fuse size depending on part code:
    • Part codes prefixed FX0380, FX0385 - 5mm x 20mm fuse
    • Part codes prefixed FX0280, FX0285 - 6.3mm x 25mm fuse
    • Part codes prefixed FX0180, FX0185 - 6.3mm x 32mm fuse
    • Choice of colour depending on part code: Black (part codes suffixed /BK) or Clear (no suffix)
    • Part codes prefixed FX0380, FX0280, FX0180 have 4.8mm diameter cable entry
    • Part codes prefixed FX0385, FX0285, FX0185 have three stage stepped grommet accomodating cable diameters: 2mm - 2.64mm, 1.5mm - 1.9mm, 1mm - 1.4mm
