Interruttori a bilanciere anti-schizzi

  • Interruttori a bilanciere anti-schizzi
  • Omologato ENEC, UL, CSA (le omologazioni e le classificazioni possono variare con la funzione - vedere la scheda tecnica per i dettagli)
  • Scossaline integrate nel corpo
  • Versioni unipolare e con solo indicatore (Serie 6030), tutte con la stessa dimensione corpo
  • Elevata tolleranza di picco (solo tipologie on/off)
  • Assortimento di:
  • - Terminale: QC 6,3 x 0,8, QC 4,8 x 0,8, morsetto a vite (versione con morsetto a vite non disponibile per i dispositivi con 3 terminali). Con barriera terminale integrale
  • - Colorazione del corpo: Nero, bianco
  • - Attuatore:
  • Serie 6000, 6001, 6002, 6010, 6011: Bilanciere Softline: nero, rosso, bianco. Bilanciere non stampato, o stampato in nero o bianco con legenda a scelta
  • Serie 6003, 6008, 6009: Bilanciere Softline illuminato e indicatore 6030 in rosso, ambra, verde, trasparente a incandescenza da 12V o 24V, neon da 125V o 250V (disponibili altre tensioni di illuminazione). Bilanciere non stampato, o stampato in nero o bianco con legenda a scelta
  • Serie 6003, 6008, 6009: Bilanciere Softline con punto illuminato in rosso, ambra, verde, trasparente con LED da 12V o 24V
  • Disponibile anche: Coperchio di protezione a scatto G74 (non adatto per interruttori ad azione momentanea), rondella di tenuta a pannello W46
  • Per i dettagli sull'intera gamma di legende o per informazioni sulle colorazioni personalizzate di corpi, bilancieri e legende per grandi ordinativi, contattare l'ufficio Vendite
  • Disponibile anche nelle versioni bipolare e a doppio interruttore (Serie 6050)
Download prodotto Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    S - Screw & Clamp

    Not available for assemblies with 3 terminals

  • Switching



    Select

    2

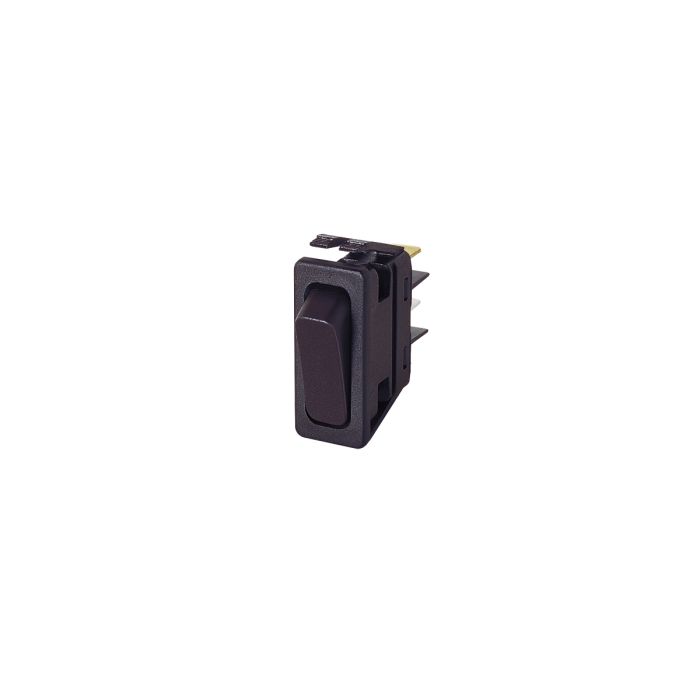

    6000 - Single Pole ON OFF

    6001 - Single Pole ON OFF (Momentary ON)

    6002 - Single Pole ON OFF (Momentary OFF)

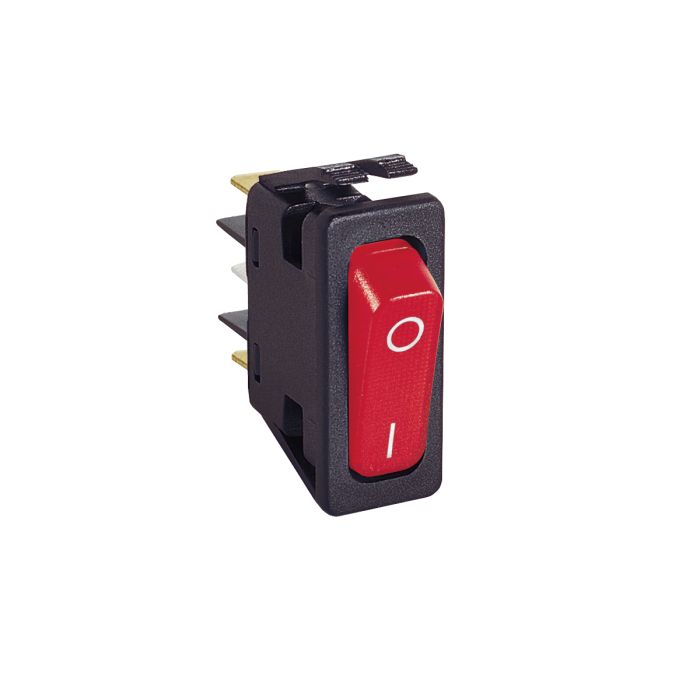

    6003 - Single Pole ON OFF Illuminated

    6008 - Single Pole ON OFF Illuminated (Unswitched N)

    With unswitched Neutral

    6009 - SP ON OFF (Momentary ON) Lit (Unsw. N)

    Illuminated, with unswitched Neutral

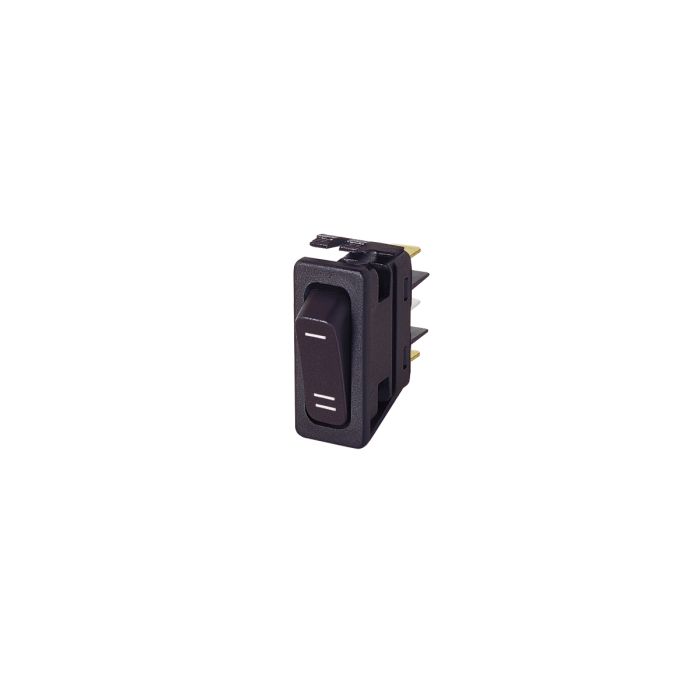

    6010 - Single Pole ON ON

    6011 - Single Pole ON ON (Momentary 1 Side)

    6030 - Indicator Only (not switched)

  • Actuator



    Select

    3

    A - Softline Rocker

    Must select for all non-Illuminated Switching (6000, 6001, 6002, 6010, 6011) selections. Must select Actuator Colour

    A - Illuminated Softline Rocker

    Only available when Illuminated Switching (6003, 6008, 6009 Series) selected. Must select Actuator Colour. Must select Illumination

    A - Softline Lens

    Must select when 6030 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    P - Softline Rocker With Illuminated Dot

    Only available when Illuminated Switching (6003, 6008, 6009 Series) selected. Must select Actuator Colour. Must select Illumination

  • Body/Bezel



    Select

    4

    L - Single Pole Size Body/Bezel

    Always select

  • Body Colour



    Select

    5

    B - Black

    W - White

  • Actuator Colour



    Select

    6

    Options available for all Switching selections

    R - Red/Red Illuminated

    Options available for non-Illuminated Switching (6000, 6001, 6002, 6010, 6011 Series) selections only

    B - Black

    W - White

    Options available for Illuminated Switching (6000, 6008, 6009 Series) and 6030 Series Indicator selections only

    A - Amber Illuminated

    C - Clear Illuminated

    G - Green Illuminated

  • Illumination



    Select

    7

    Select (Not Applicable) unless Illuminated Switching (6000, 6008, 6009 Series) or 6030 Series Indicator selected when Illumination must be selected

    (Not Applicable)

    Must select when Non-Illuminated Switching (6000, 6001, 6002, 6010, 6011 Series) selected

    2 - 125V Neon

    3 - 250V Neon

    5 - 12VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    6 - 24VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    7 - 12V Filament

    8 - 24V Filament

  • Legend



    Select

    8

    Select Blank/Not Applicable unless Softline Rocker/Illuminated Softline Rocker (A) selected when Legend can optionally be selected

    Blank/Not Applicable

    No Legend required, or not available for selected Actuator

    1223 - EN1223 - O I Vertical

    Must select Legend Colour

    1224 - EN1224 - O I Horizontal

    Must select Legend Colour

  • Legend Colour



    Select

    9

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    Required when a Legend is selected

    W - White

    Required when a Legend is selected

  • Cover



    Select

    10

    None

    No cover required

    G74 - Single Pole Body Size Snap On Cover
