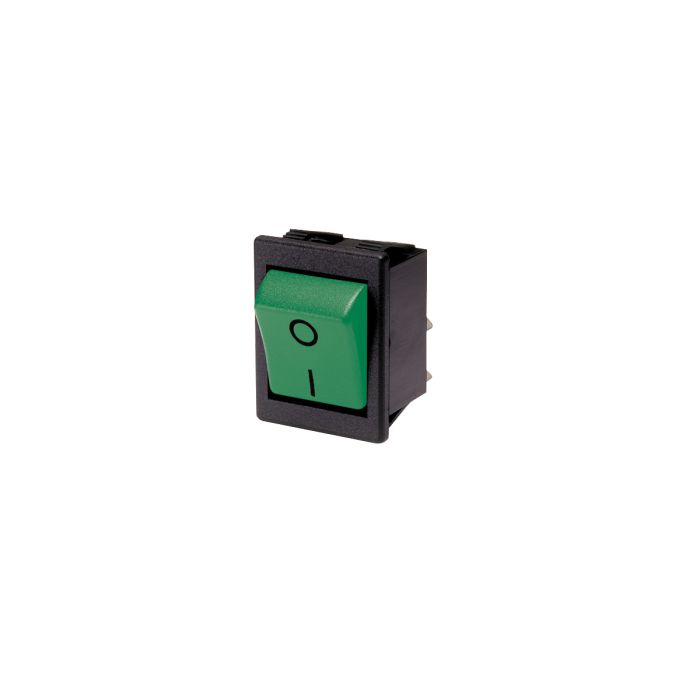

Gamma di interruttori bipolari e a bilanciere selettivo a 3 posizioni

  • Gamma di interruttori bipolari e a bilanciere selettivo a 3 posizioni
  • Versioni standard (Serie 1550) a elevata tolleranza di picco (Serie 1350), selettivo 3 posizioni (Serie 1484, 1487) e con solo indicatore (Serie 0480)
  • Disponibili versioni a bilanciere anti-schizzi
  • Certificazioni ENEC, UL, CSA (tranne Serie 1562). (Alcune omologazioni non sono valide per alcune tipologie di terminali). Le omologazioni e le classificazioni possono variare con la funzione: vedere la scheda tecnica per i dettagli
  • Assortimento di:
  • - Terminale: QC 6,3 x 0,8, QC 4,8 x 0,8, linguetta 2,8 x 0,8 (non disponibile per interruttori Serie 1350), capocorda a saldare, montaggio PCB (non disponibile per interruttori Serie 1350 o indicatore Serie 0480) con barriere terminali
  • - Stili corpo/sagoma
  • - Colorazione del corpo: Nero, bianco
  • - Protezione/Coperchio: Tutti gli interruttori, ad eccezione degli interruttori selettivi a 3 posizioni della Serie 1484 e 1487 e dell'indicatore Serie 0480, possono anche essere forniti con una protezione (dello stesso colore del corpo) o con un coperchio a sportello che si chiude verso il basso nero (solitamente fornito con interruttori non illuminati) o trasparente (solitamente fornito con interruttori illuminati)
  • - Attuatore:
  • Serie 1484, 1487: Bilanciere antischizzi Softline disponibile in nero, rosso, bianco
  • Serie 1550, 1551, 1552, 1553, 1560, 1561, 1562, 1570, 1571, 1572, 1350 senza protezione/coperchio: Bilanciere Softline, bilanciere antischizzi Softline (con Arcshield e collare/tenuta Hytrel, non disponibile per Serie 1553), bilanciere curvo, bilanciere antischizzi curvo (con Arcshield, non disponibile per Serie 1553, 1350), bilanciere bicolore Softline con scelta di inserto rosso, bianco (solo Serie 1550), rotondo.
  • Serie 1550, 1551, 1552, 1553, 1560, 1561, 1562, 1570, 1571, 1572, 1350 con protezione/coperchio: Bilanciere Softline, bilanciere curvo
  • Serie 1553, 1353: Bilanciere Softline illuminato, bilanciere curvo illuminato disponibile in rosso, ambra, verde, trasparente a incandescenza da 12V o 24V, neon da 125V o 250V (disponibili altre tensioni di illuminazione); bilanciere Softline con punto illuminato in rosso, ambra, verde, trasparente con LED da 12V o 24V
  • Tutte le tipologie di bilanciere disponibili non stampate, o stampate in bianco o nero con legenda a scelta.
  • - Finitura: Finitura lucida disponibile anche per alcune tipologie di corpo e per le versioni standard di bilanciere curvo. Bilanciere curvo illuminato disponibile solo con finitura lucida. L'indicatore 0480 è disponibile con lente a profilo piatto lucido o con lente a profilo softline opaco, o con lente tonda
  • Disponibile anche: Coperchio di protezione a scatto G74 per alcune tipologie di corpo/sagoma (non adatto per interruttori ad azione momentanea), rondella di tenuta a pannello W42 (non disponibile per tutte le tipologie di corpo/sagoma, vedere scheda tecnica per i dettagli), piastra di otturazione A0494
  • Per i dettagli sull'intera gamma di legende o per informazioni sulle colorazioni personalizzate di corpi, bilancieri e legende per grandi ordinativi, contattare l'ufficio Vendite
  • Disponibile anche nelle versioni illuminata (Serie 5500), unipolare (Serie 1500) e unipolare con elevata tolleranza di picco (Serie 1300)
Download prodotto Product Certificates

Part number builder

Make one selection from each category to define part number

  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    K - 2.8 x 0.8 Tab

    Not available when High Inrush Switching (1350, 1353 Series) selected

    T - Solder Lug

    X - PCB Mount

    Not available when High Inrush Switching (1350, 1353 Series) or 0480 Series Indicator selected

  • Switching



    Select

    2

    1350 - Double Contact ON OFF High Inrush

    Not available when 2.8 x 0.8 Tab (K), PCB Mount (X) Termination selected. Cannot select Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator

    1353 - Double Contact ON OFF High Inrush Illuminated

    Not available when 2.8 x 0.8 Tab (K), PCB Mount (X) Termination selected. Cannot select Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator

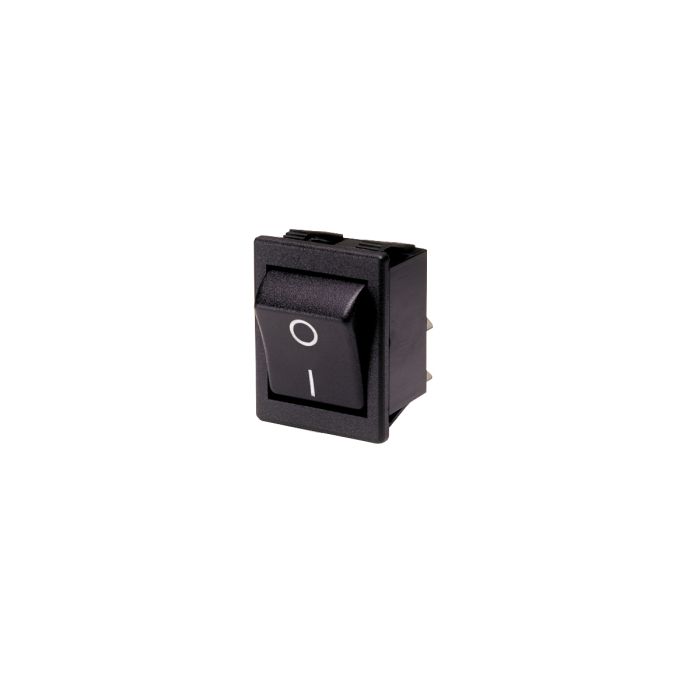

    1550 - Double Contact ON OFF

    1551 - Double Contact ON OFF (Momentary ON)

    1552 - Double Contact ON OFF (Momentary OFF)

    1553 - Double Contact ON OFF Illuminated

    Cannot select Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator

    1560 - Double Contact ON ON

    1561 - Double Contact ON ON (Momentary 1 Side)

    1562 - 2 Circuit ON ON

    1570 - Double Contact ON OFF ON

    1571 - DP ON OFF ON (Momentary 1 Side)

    1572 - DP ON OFF ON (Momentary 2 Sides)

    1484 - 3 Position Selective

    Must select Matt Splash Resistant Softline Rocker (B) Actuator. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Other 3 Position Selective configurations available - contact Sales for details

    1487 - 3 Position Selective

    Must select Matt Splash Resistant Softline Rocker (B) Actuator. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Other 3 Position Selective configurations available - contact Sales for details

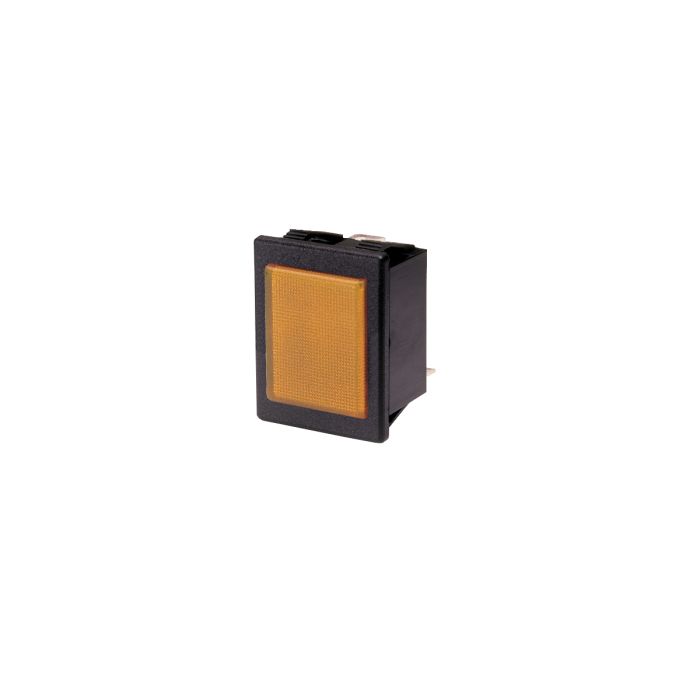

    0480 - Indicator Only (not switched)

    Not available when PCB Mount (X) Termination selected. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected.

  • Actuator



    Select

    3

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    A - Matt Softline Rocker

    Only available for 1350, 1550, 1551, 1552, 1560, 1561, 1562, 1570, 1571, 1572 Series Switching selections. Must select Actuator Colour

    A - Matt Illuminated Softline Rocker

    Only available when Illuminated Switching (1353, 1553 Series) selected. Must select Actuator Colour. Must select Illumination

    A - Matt Softline Lens

    Only available when 0480 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    B - Matt Splash Resistant Softline Rocker

    With Arcshield; Hytrel collar/seals for enhanced protection. Only available for non-Illuminated Switching (all but 1353, 1553 Series) selections. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Must select Actuator Colour

    F - Gloss Flat Lens

    Only available when 0480 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

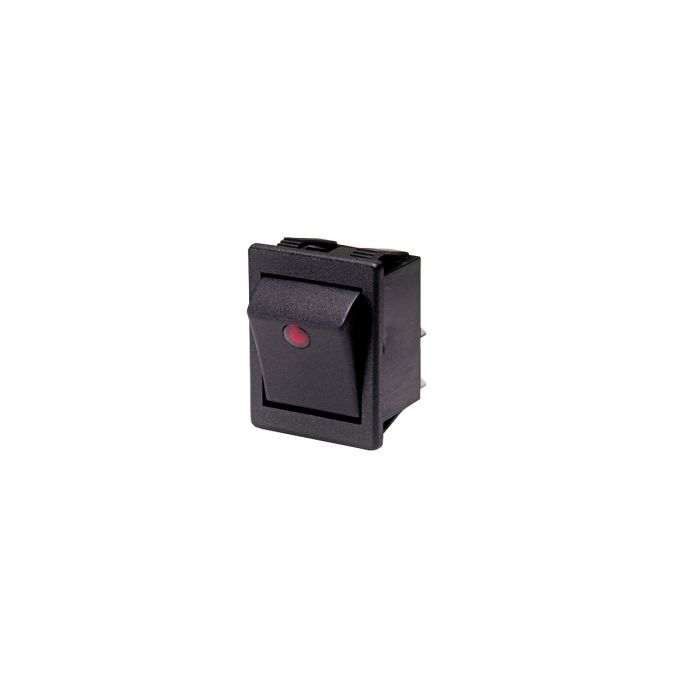

    P - Matt Softline Rocker With Illuminated Dot

    Only available when Illuminated Switching (1353, 1553 Series) selected. Must select Actuator Colour. Must select Illumination

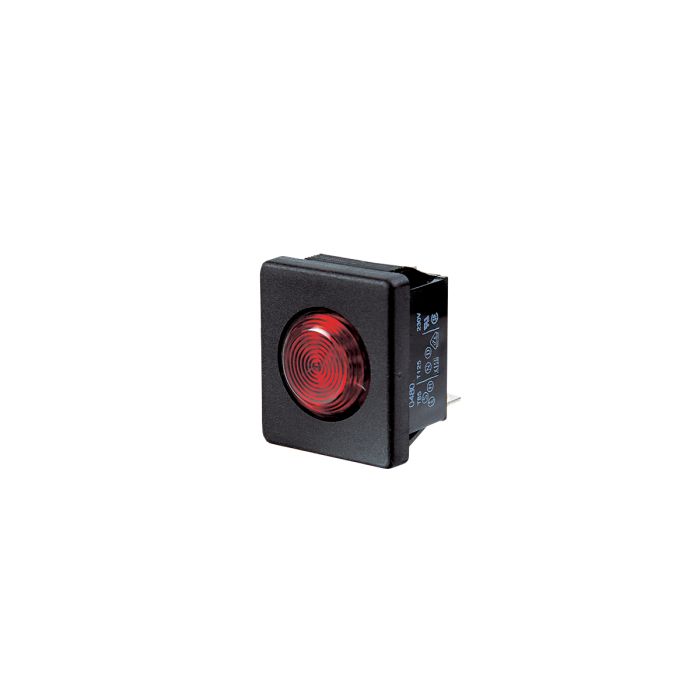

    R - Round Lens

    Only available when 0480 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    V - Matt/Gloss Curved Rocker

    Only available for 1350, 1550, 1551, 1552, 1560, 1561, 1562, 1570, 1571, 1572 Series Switching selections. Must select Actuator Colour

    V - Gloss Illuminated Curved Rocker

    Only available when Illuminated Switching (1353, 1553 Series) selected. Must select Actuator Colour. Must select Illumination

    W - Matt Splash Resistant Curved Rocker

    With Arcshield. Only available for 1350, 1550, 1551, 1552, 1560, 1561, 1562, 1570, 1571, 1572 Series Switching selections. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Must select Actuator Colour

    X - Matt Two Colour Curved Rocker

    Only available for 1550, 1560, 1562, 1570 Series Switching selections. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Must select Actuator Colour and Insert Colour

  • Body/Bezel



    Select

    4

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    A - Matt/Gloss Body/Bezel A

    B - Matt Body/Bezel B

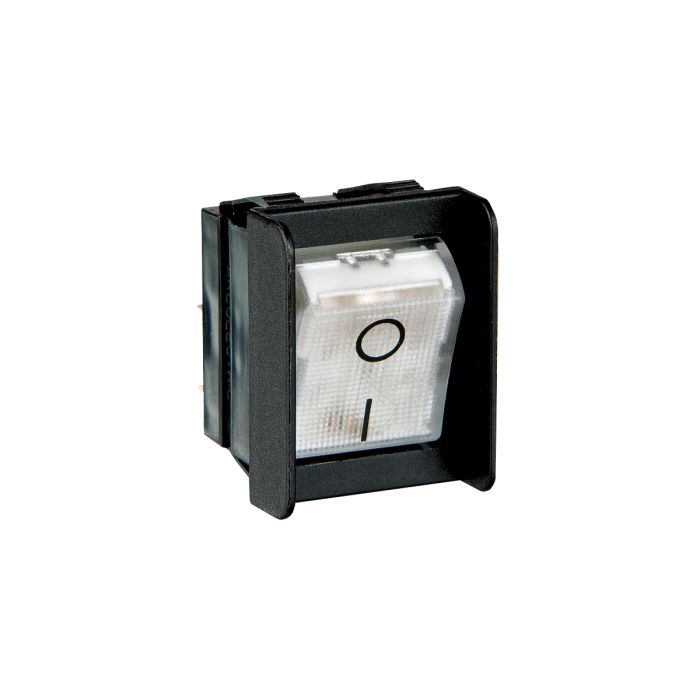

    G - Matt Body/Bezel G With Guard

    Guard colour is the same as Body Colour selection.
    Not available when 3 Position Selective (1484, 1487) Switching, 0480 Series Indicator or Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator selected

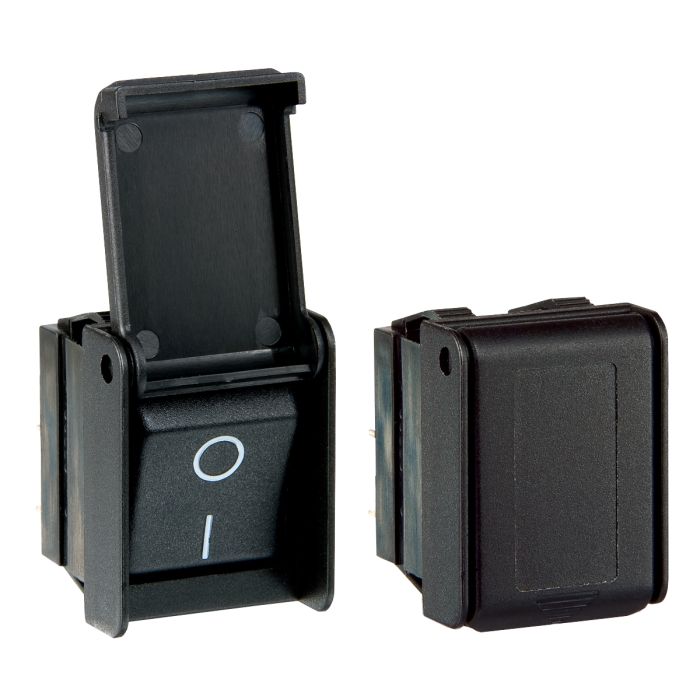

    HB - Matt Body/Bezel H With Black Flip Cover

    Usually selected with non-Illuminated Switching (all but 1353, 1553 Series) selections.
    Not available when 3 Position Selective (1484, 1487) Switching, 0480 Series Indicator or Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator selected

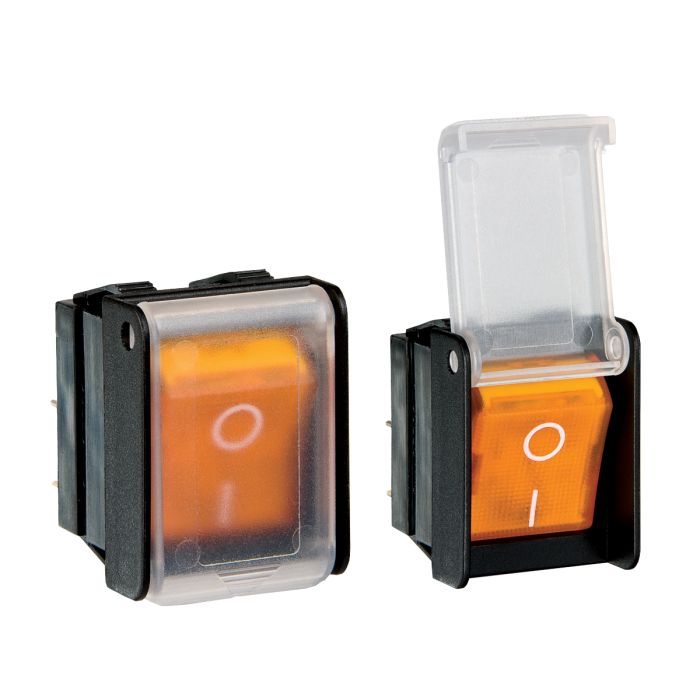

    HC - Matt Body/Bezel H With Clear Flip Cover

    Usually selected with Illuminated Switching (1353, 1553 Series) selections.
    Not available when 3 Position Selective (1484, 1487) Switching, 0480 Series Indicator or Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator selected

    L - Matt Body/Bezel L

    Q - Gloss Body/Bezel Q

    R - Matt Body/Bezel R

    T - Matt Body/Bezel T

  • Finish



    Select

    5

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    G - Gloss Finish

    Must select if both Actuator and Body/Bezel selections are Gloss finish

    M - Matt Finish

    Must select if both Actuator and Body/Bezel selections are Matt finish

  • Body Colour



    Select

    6

    B - Black

    W - White

  • Actuator Colour



    Select

    7

    Options available for all Switching selections

    R - Red/Red Illuminated

    For all Switching and 0480 Series Indicator selections

    Options available for non-Illuminated Switching (all but 1353, 1553 Series and 0480 Series Indicator) selections only

    B - Black

    W - White

    Only available when non-Illuminated Switching (all but 1353, 1553 Series and 0480 Series Indicator) selected

    Options available for Illuminated Switching (1353, 1553 Series and 0480 Series Indicator) selections only

    A - Amber Illuminated

    C - Clear Illuminated

    G - Green Illuminated

  • Insert Colour



    Select

    8

    Select (Not Applicable) unless Matt Two Colour Curved Rocker (X) Actuator selected when Insert Colour must be selected

    (Not Applicable)

    Must select if Matt Two Colour Curved Rocker (X) Actuator not selected

    R - Red

    Required when Matt Two Colour Curved Rocker (X) Actuator selected

    W - White

    Required when Matt Two Colour Curved Rocker (X) Actuator selected

  • Illumination



    Select

    9

    Select (Not Applicable) unless Illuminated Switching (1353, 1553 Series) or 0480 Series Indicator selected when Illumination must be selected

    (Not Applicable)

    Must select unless Illuminated Switching (1353, 1553 Series) or 0480 Series Indicator selected

    2 - 125V Neon

    3 - 250V Neon

    5 - 12VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    6 - 24VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    7 - 12V Filament

    8 - 24V Filament

  • Legend



    Select

    10

    Select Blank/Not Applicable if 0480 Series Indicator selected, otherwise Legend can optionally be selected

    Blank/Not Applicable

    No Legend required, or not available

    602A - EN602A - O I Vertical

    Must select Legend Colour

    730 - EN730 - II O I Vertical

    Must select Legend Colour

    822 - EN822 - Fan

    Must select Legend Colour

  • Legend Colour



    Select

    11

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    Required when a Legend is selected

    W - White

    Required when a Legend is selected

  • Cover



    Select

    12

    None/Not Applicable

    No cover required or no cover available for selected Body/Bezel

    G74 - Single Contact Body Size Snap On Cover

    Available only when Matt/Gloss Body/Bezel A, Matt Body/Bezel L, Matt/Gloss Body/Bezel Q, Matt Body/Bezel T selected

  • BioCote



    Select

    13

    No BioCote

    Without BioCote Antimicrobial Additive

    B - With BioCote

    Moulded components have BioCote additive with antimicrobial properties using BioCote silver ion technology
