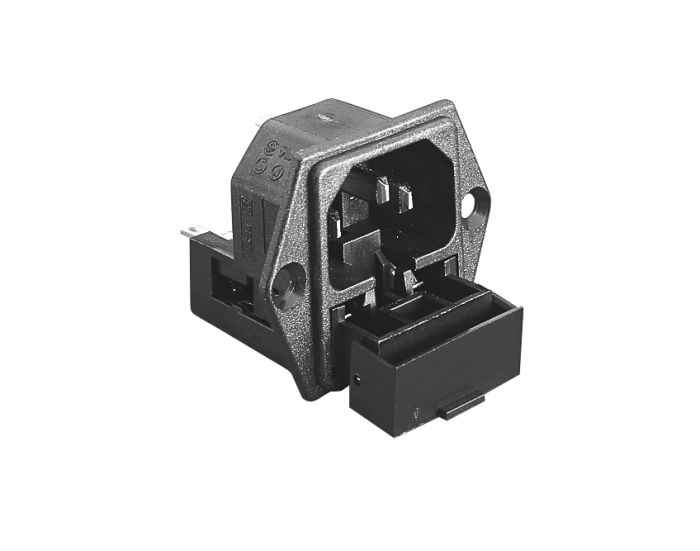

Twin Fused IEC Inlet 3 Pin Flange Mount / 320 C14

PF0030 Series

  • Flange Mount Twin Fused IEC Inlets
  • EN60 320-1 Standard Sheet C14 Class I
  • Cold Condition
  • Twin Fused, 5mm x 20mm fuses
  • Choice of Termination depending on part code: /28 - 2.8mm Solder Tag, /48 - 4.8mm Tab, /PC - PCB Spills
  • Insulation Boot for rear of connector available separately (part code 14317) for all versions except PCB Mount
  • Retaining Clip KT0009 available separately for all versions except PCB Mount to prevent accidental removal of mating connector (for use with PX0587 Female Connector only)
  • Mate with PX0587, PX0587/SE, PX0588
