12mm Round Indicators / 9.5mm or 10.00mm Panel Cut Out / LED, Neon or Filament Lamp
0276 00 / AA Series

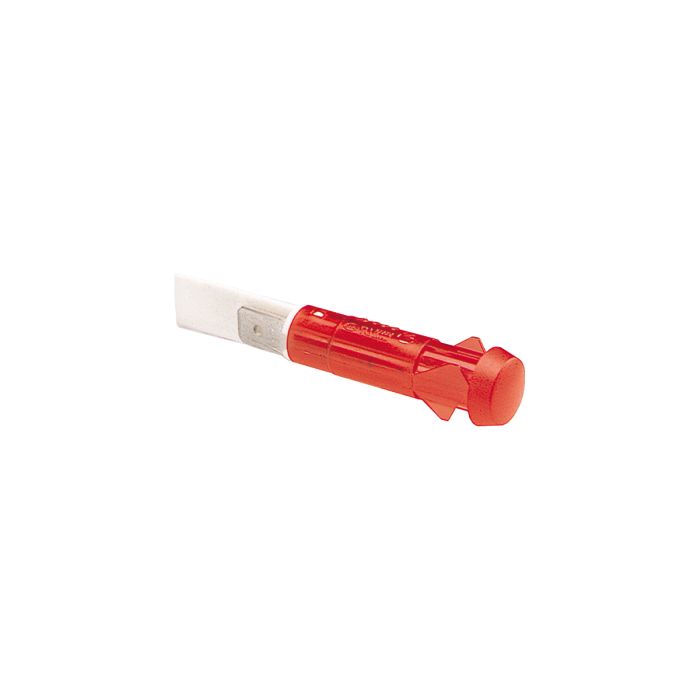

- 12mm Round Indicators
- Choice of:
- Body diameter: 10mm (0276 Series), 9.5mm (0276AA Series)
- Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab (all with long terminal barrier), Wire Leads
- Illumination type and operating voltage:
- Neon: 100V-130V, 200V-250V
- LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC (versions for other working voltages available - contact Sales for details)
- Filament: 6V, 12V-14V, 24V-28V
- Lens colour:
- Neon, Filament: Red, Amber, Green, Clear. Blue also available to special order - contact Sales for details
- LED: Red, Yellow, Green, White, Blue
- Approvals: Neon, LED AC operation: UL, CSA, KEMA-KEUR. LED DC operation, Filament: KEMA-KEUR
Part number builder
Make one selection from each category to define part number
