12.9mm x 19.1mm-19.8mm Panel Cutout Extensive range of Push Button Switches

    • Extensive range of Push Button Switches
    • ENEC, UL, CSA approved. Approvals and ratings can vary with function - see technical data for details. High Power versions available
    • 8300, 8301, 8350, 8351 Series also available in IP66 Panel Sealed Vandal Resistant version with Stainless Steel body, button and bezel
    • Single Contact and Double Contact versions in same body size with range of switching functions
    • Choice of:
    • Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, Right Angle 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Solder Tag, PCB Mount, PCB Mount Dual Pin (extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details)
    • Body colour: Black, White
    • Body style: Standard, Softline. Weather resistant housing option
    • Actuator button: Standard, Square, Radiused, Small Round, Large Round, Smooth Curved, Plunger, Slotted (for use with custom snap-in buttons). Smooth Curved and Large Round Actuators are gloss finish, all others matt finish. 8300, 8301, 8350, 8351
    • Illumination: All Actuator types can be Illuminated in choice of Red, Amber, Green, Clear using 12V or 24V Filament, 125V or 250V Neon (other illumination voltages available). Switch versions with isolated Illumination (8355, 8356 Series) are only available with Square, Radiused or Plunger actuators
    • Legend: All Actuator types except Slotted can be unprinted, or printed in Black or White with a wide choice of Legend
    • Also available: L167 snap on protective cover (suitable for Standard or Smooth Curved Actuator versions only)
    • BioCote additive option, giving moulded components antimicrobial properties using BioCote silver ion technology
    • For details of the full range of Legends or information about custom body, Actuator and Legend colours for large orders, please contact Sales
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number



  • Termination



    Select

    1

    A - 4.8 x 0.8 QC Right Angle

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    K - 2.8 x 0.8 Tab

    T - Solder Lug

    V - PCB Mount Dual Pin

    Extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details

    X - PCB Mount

    Extra dummy PCB Mount terminals can be added for additional mechanical support to switch body - contact Sales for details

  • Switching



    Select

    2

    8300 - Single Contact ON OFF

    8301 - Single Contact ON OFF (Momentary ON)

    8303 - Single Contact ON OFF Illuminated

    8304 - Single Contact ON OFF (Momentary ON) Illuminated

    8350 - Double Contact ON OFF

    8351 - Double Contact ON OFF (Momentary ON)

    8353 - Double Contact ON OFF Illuminated

    8354 - Double Contact ON OFF (Momentary ON) Illuminated

    8355 - SP ON OFF With Switched Iso Illumination

    With Switched Isolated Illumination. Only available when Square Button (C), Radiused Button (E), Plunger (M) Actuator selected

    8356 - SP ON OFF With Unswitched Iso Illumination

    With Unswitched Isolated Illumination. Only available when Square Button (C), Radiused Button (E), Plunger (M) Actuator selected

  • Actuator



    Select

    3

    Actuators A, C, E, F, M are Matt Finish, Actuators J, D are Gloss Finish. Wide range of other Actuator types available - contact Sales for details

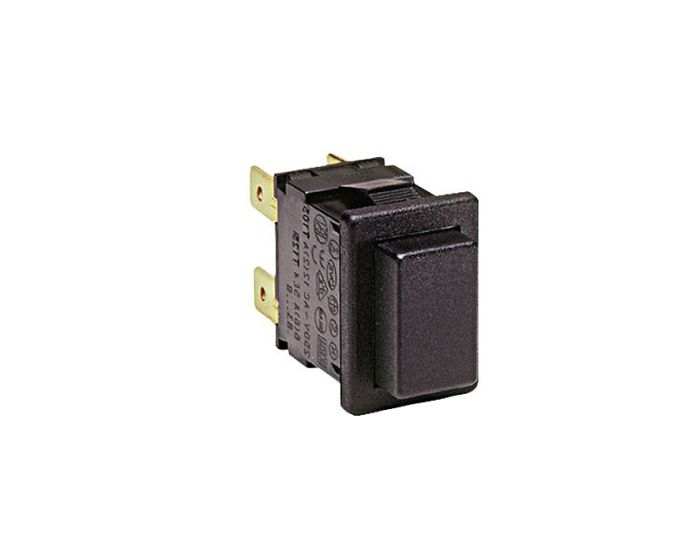

    A - Standard Button

    Not available when 8355, 8356 Series Switching selected

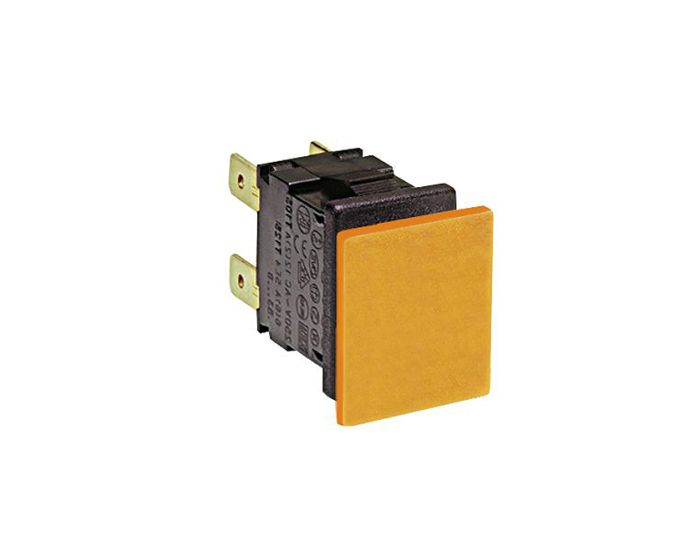

    C - Square Button

    D - Large Round Button

    Not available when 8355, 8356 Series Switching selected

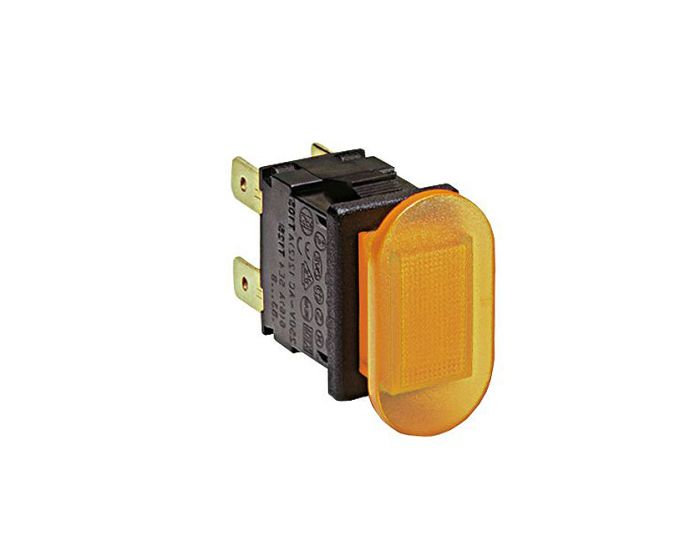

    E - Radiused Button

    F - Small Round Button

    Not available when 8355, 8356 Series Switching selected

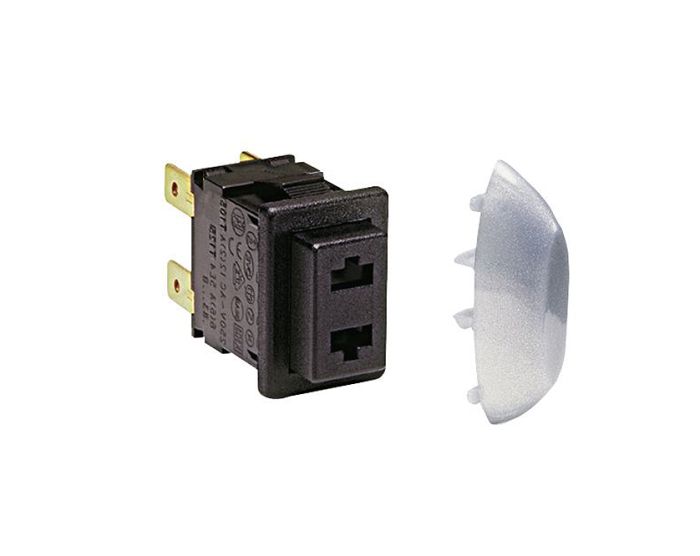

    H - Slotted

    For snap-in custom buttons. Not available when Illuminated Switching (8303, 8304, 8353, 8354, 8355, 8356 Series) selected

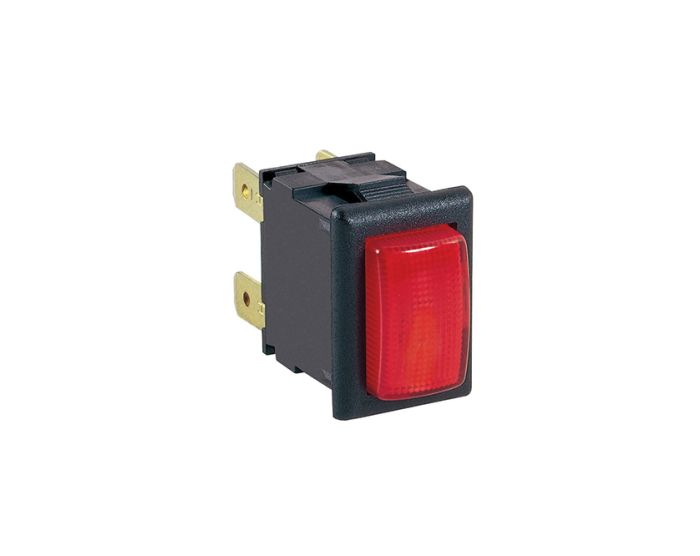

    J - Smooth Curved Button

    Not available when 8355, 8356 Series Switching selected

    M - Plunger

  • Body/Bezel



    Select

    4

    B - Standard Body/Bezel

    E - Softline Body With Radiused Bezel

  • Body Colour



    Select

    5

    B - Black

    W - White

  • Actuator Colour



    Select

    6

    Options available for all Switching selections

    R - Red/Red Illuminated

    Must select Illumination when Illuminated Switching (8303, 8304, 8353, 8354, 8355, 8356 Series) selected. Not available when Slotted (H) Actuator selected

    Options available for non-Illuminated Switching (8300, 8301, 8350, 8351 Series) selections only

    B - Black

    Must select when Slotted (H) Actuator selected

    W - White

    Not available when Slotted (H) Actuator selected

    Options available for Illuminated Switching (8303, 8304, 8353, 8354, 8355, 8356 Series) selections only. Must select Illumination

    A - Amber Illuminated

    C - Clear Illuminated

    G - Green Illuminated

  • Illumination



    Select

    7

    Select (Not Applicable) unless Illuminated Switching (8303, 8304, 8353, 8354, 8355, 8356 Series) selected when Illumination must be selected

    (Not Applicable)

    Must select when non-Illuminated Switching (8300, 8301, 8350, 8351 Series) selected

    2 - 125V Neon

    3 - 250V Neon

    7 - 12V Filament

    8 - 24V Filament

  • Legend



    Select

    8

    Many other Legends available. Please contact Sales for details of the full range

    Blank/Not Applicable

    No Legend required, or not available for selected Actuator. Must select when Slotted (H) Actuator selected

    1152 - EN1152

    Must select Legend Colour

    1153 - EN1153 - Lamp Horizontal

    Must select Legend Colour

  • Legend Colour



    Select

    9

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    W - White

  • Cover



    Select

    10

    None/Not Applicable

    No cover required or no cover available for selected Actuator

    L167 - Snap On Cover

    Only available when Standard Button (A) or Smooth Curved Button (J) Actuator selected

  • Power



    Select

    11

    Standard

    Standard power rating

    H - High Power

    12(12)A 250VAC switch rating; see Technical Data for more details

  • BioCote



    Select

    12

    No BioCote/Not Applicable

    Without BioCote Antimicrobial Additive

    B - With BioCote

    Moulded components have BioCote additive with antimicrobial properties using BioCote silver ion technology
