Standard and High Inrush Rocker Switches

1350 | 1550 Range

    • Range of Double Contact and 3 Position Selective Rocker Switches

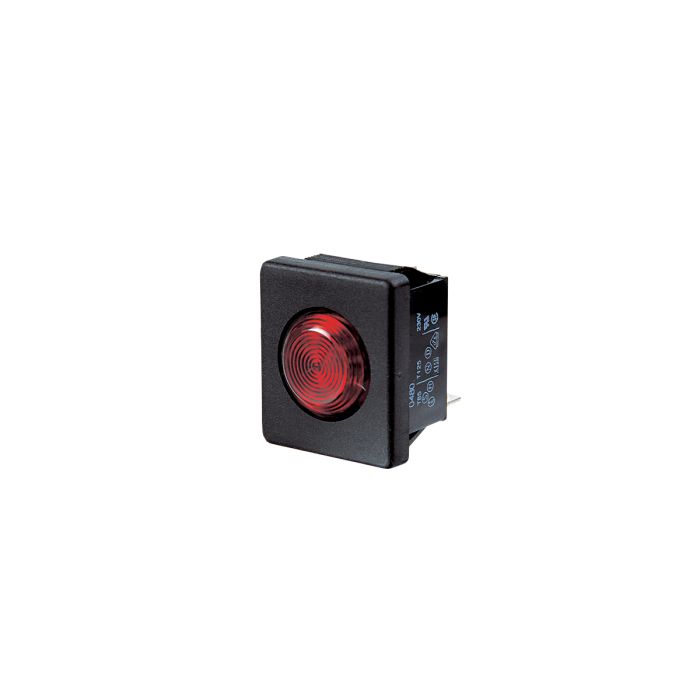

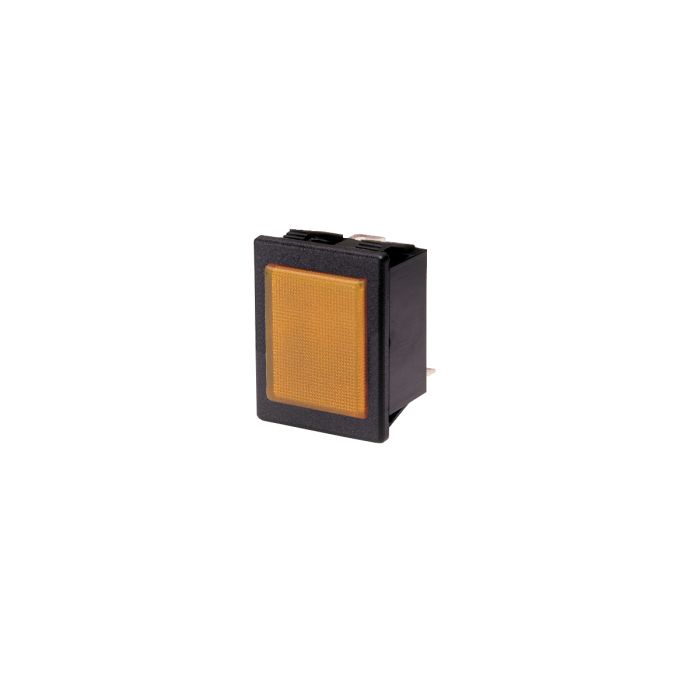

    • Standard (1550 Range), high inrush tolerant (1350 Range), 3 position selective (1484, 1487 Range) and Indicator Only version (0480 Range)
    • Splash resistant rocker versions available
    • ENEC (for 1350 Range), UL, CSA approved (except 1562 Range). (Some approvals do not apply to some Termination types.) Approvals and ratings can vary with function - see technical data for details
    • Choice of:
    • Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab (not available for 1350 Range switches), Solder Lug, PCB Mount (not available for 1350 Range switches or 0480 Range Indicator) with terminal barriers
    • Body/bezel styles
    • Body colour: Black, White

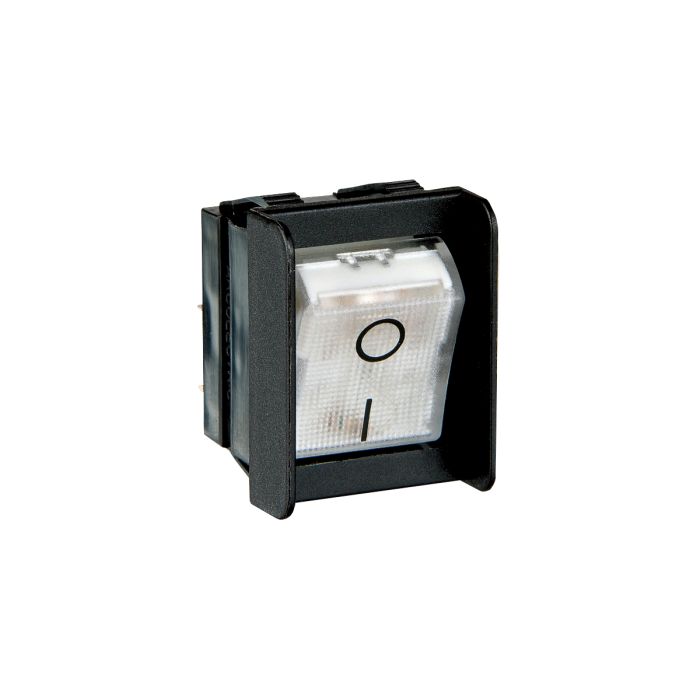

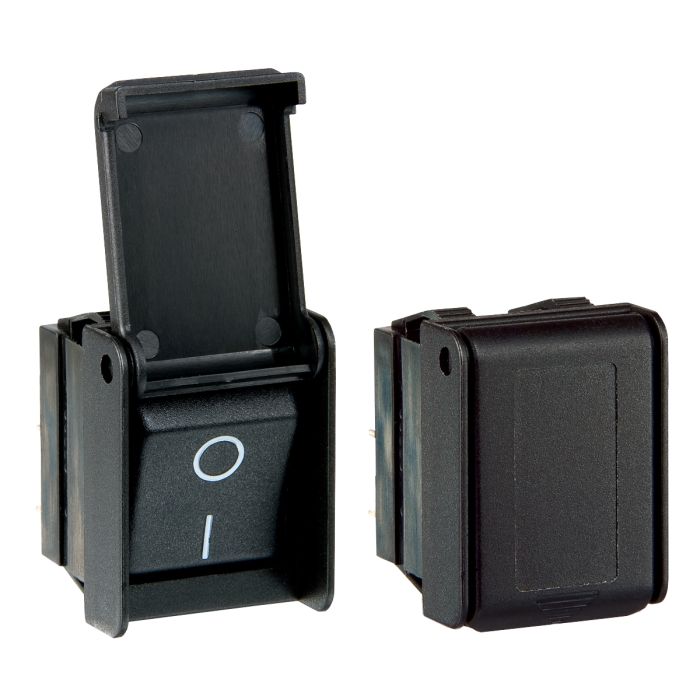

    • Guard/Cover: All switches except 1484, 1487 Series 3 position selective switches and 0480 Series Indicator can also be supplied with a guard (same colour as Body) or flap-down cover in Black (usually supplied with non-Illuminated switches) or Clear (usually supplied with Illuminated switches)
    • Actuator:
    • 1484, 1487 Range: Softline Splash Resistant Rocker available in Black, Red, White

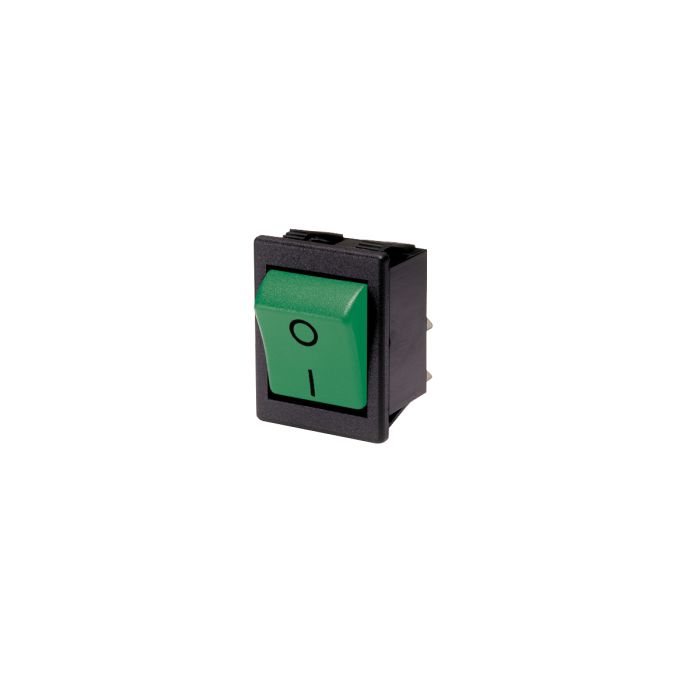

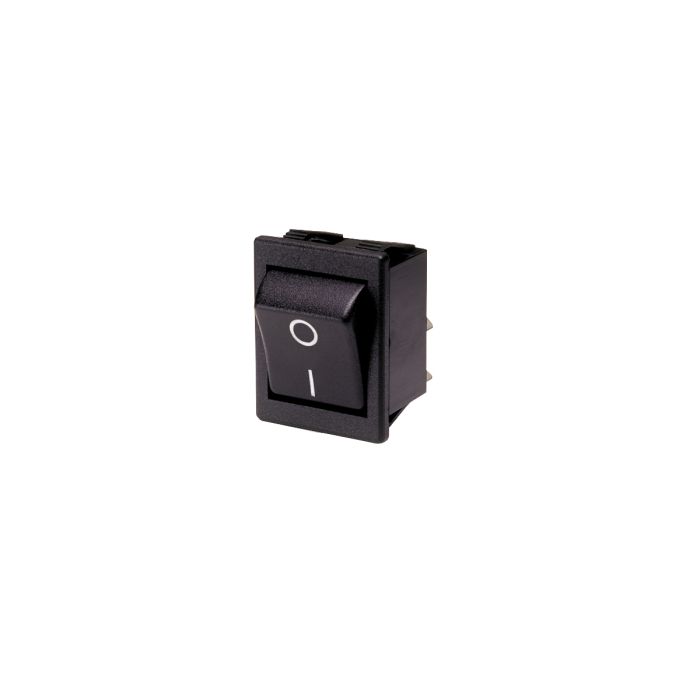

    • 1550, 1551, 1552, 1553, 1560, 1561, 1562, 1570, 1571, 1572, 1350 Range without guard/cover: Softline Rocker, Softline Splash Resistant Rocker (with Arcshield and Hytrel collar/seals, not available for 1553 Range), Curved Rocker, Curved Splash Resistant Rocker (with Arcshield, not available for 1553, 1350 Series), Two Colour Softline Rocker with choice of Red, White insert (1550 Range only), Round
    • 1550, 1551, 1552, 1553, 1560, 1561, 1562, 1570, 1571, 1572, 1350 Range with guard/cover: Softline Rocker, Curved Rocker

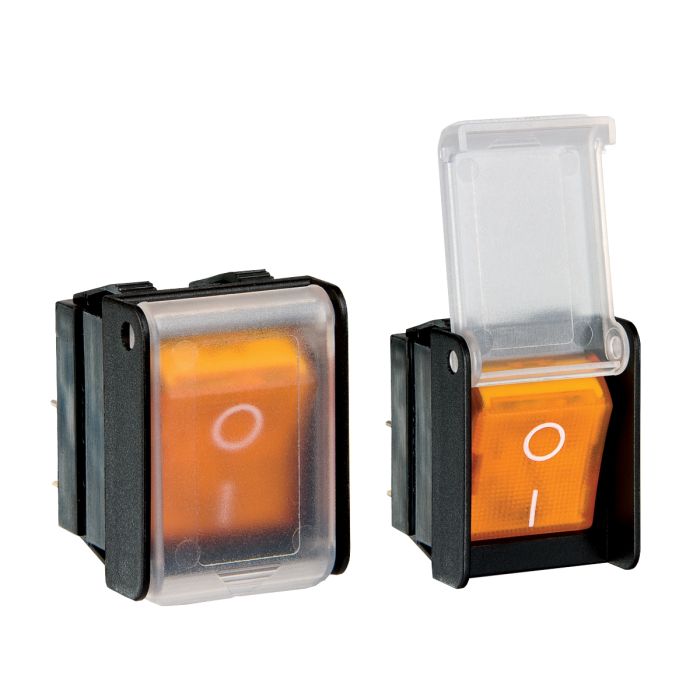

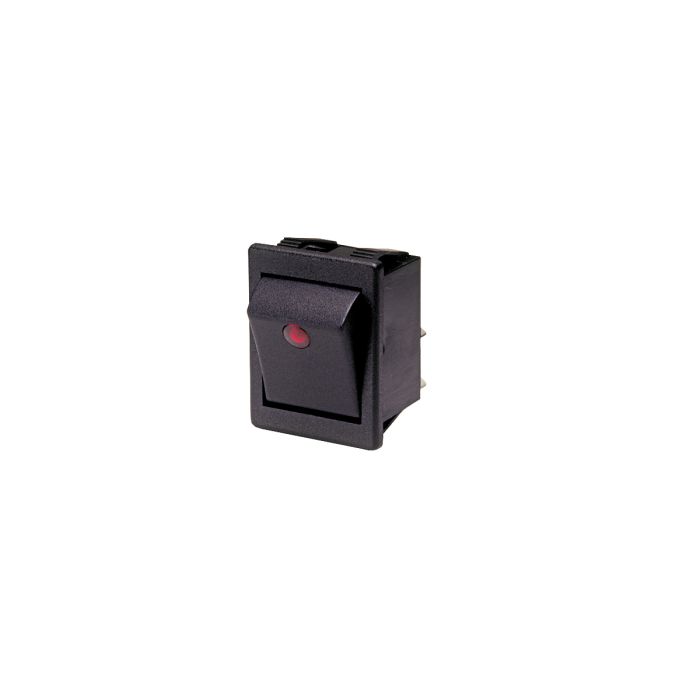

    • 1553, 1353 Range: Illuminated Softline Rocker, Illuminated Curved Rocker in choice of Red, Amber, Green, Clear using 12V or 24V Filament, 125V or 250V Neon (other illumination voltages available); Softline Rocker with Illuminated dot in choice of Red, Amber, Green, Clear using 12V or 24V LED
    • All Rocker types available unprinted, or printed in Black or White with a choice of Legend
    • Finish: Gloss finish also available for some body types and for standard Curved Rocker versions. Illuminated Curved Rocker available in gloss finish only. 0480 Indicator has choice of gloss flat profile lens, matt softline profile lens, or round lens
    • Also available: G74 snap on protective cover for some body/bezel types (not suitable for momentary action switches), W42 panel sealing washer (not available for all body/bezel types - see technical data for details), A0494 blanking plate
    • For details of the full range of Legends or information about custom body, rocker and Legend colours for large orders, please contact Sales
    • Also available in Illuminated (5500 Range), Single Contact (1500 Range) and Single Contact high inrush (1300 Range) versions
Product Downloads Product Certificates

Part number builder

Make one selection from each category to define part number

  • Termination



    Select

    1

    C - 6.3 x 0.8 QC

    H - 4.8 x 0.8 QC

    K - 2.8 x 0.8 Tab

    Not available when High Inrush Switching (1350, 1353 Series) selected

    T - Solder Lug

    X - PCB Mount

    Not available when High Inrush Switching (1350, 1353 Series) or 0480 Series Indicator selected

  • Switching



    Select

    2

    1350 - Double Contact ON OFF High Inrush

    Not available when 2.8 x 0.8 Tab (K), PCB Mount (X) Termination selected. Cannot select Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator

    1353 - Double Contact ON OFF High Inrush Illuminated

    Not available when 2.8 x 0.8 Tab (K), PCB Mount (X) Termination selected. Cannot select Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator

    1550 - Double Contact ON OFF

    1551 - Double Contact ON OFF (Momentary ON)

    1552 - Double Contact ON OFF (Momentary OFF)

    1553 - Double Contact ON OFF Illuminated

    Cannot select Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator

    1560 - Double Contact ON ON

    1561 - Double Contact ON ON (Momentary 1 Side)

    1562 - 2 Circuit ON ON

    1570 - Double Contact ON OFF ON

    1571 - DP ON OFF ON (Momentary 1 Side)

    1572 - DP ON OFF ON (Momentary 2 Sides)

    1484 - 3 Position Selective

    Must select Matt Splash Resistant Softline Rocker (B) Actuator. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Other 3 Position Selective configurations available - contact Sales for details

    1487 - 3 Position Selective

    Must select Matt Splash Resistant Softline Rocker (B) Actuator. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Other 3 Position Selective configurations available - contact Sales for details

    0480 - Indicator Only (not switched)

    Not available when PCB Mount (X) Termination selected. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected.

  • Actuator



    Select

    3

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    A - Matt Softline Rocker

    Only available for 1350, 1550, 1551, 1552, 1560, 1561, 1562, 1570, 1571, 1572 Series Switching selections. Must select Actuator Colour

    A - Matt Illuminated Softline Rocker

    Only available when Illuminated Switching (1353, 1553 Series) selected. Must select Actuator Colour. Must select Illumination

    A - Matt Softline Lens

    Only available when 0480 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    B - Matt Splash Resistant Softline Rocker

    With Arcshield; Hytrel collar/seals for enhanced protection. Only available for non-Illuminated Switching (all but 1353, 1553 Series) selections. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Must select Actuator Colour

    F - Gloss Flat Lens

    Only available when 0480 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    P - Matt Softline Rocker With Illuminated Dot

    Only available when Illuminated Switching (1353, 1553 Series) selected. Must select Actuator Colour. Must select Illumination

    R - Round Lens

    Only available when 0480 Series Indicator selected. Must select Actuator Colour (indicator colour). Must select Illumination

    V - Matt/Gloss Curved Rocker

    Only available for 1350, 1550, 1551, 1552, 1560, 1561, 1562, 1570, 1571, 1572 Series Switching selections. Must select Actuator Colour

    V - Gloss Illuminated Curved Rocker

    Only available when Illuminated Switching (1353, 1553 Series) selected. Must select Actuator Colour. Must select Illumination

    W - Matt Splash Resistant Curved Rocker

    With Arcshield. Only available for 1350, 1550, 1551, 1552, 1560, 1561, 1562, 1570, 1571, 1572 Series Switching selections. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Must select Actuator Colour

    X - Matt Two Colour Curved Rocker

    Only available for 1550, 1560, 1562, 1570 Series Switching selections. Not available when Matt Body/Bezel G With Guard (G) or Matt Body/Bezel H With Flip Cover (HB, HC) selected. Must select Actuator Colour and Insert Colour

  • Body/Bezel



    Select

    4

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    A - Matt/Gloss Body/Bezel A

    B - Matt Body/Bezel B

    G - Matt Body/Bezel G With Guard

    Guard colour is the same as Body Colour selection.
    Not available when 3 Position Selective (1484, 1487) Switching, 0480 Series Indicator or Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator selected

    HB - Matt Body/Bezel H With Black Flip Cover

    Usually selected with non-Illuminated Switching (all but 1353, 1553 Series) selections.
    Not available when 3 Position Selective (1484, 1487) Switching, 0480 Series Indicator or Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator selected

    HC - Matt Body/Bezel H With Clear Flip Cover

    Usually selected with Illuminated Switching (1353, 1553 Series) selections.
    Not available when 3 Position Selective (1484, 1487) Switching, 0480 Series Indicator or Matt Splash Resistant Softline Rocker (B), Matt Splash Resistant Curved Rocker (W), Matt Two Colour Curved Rocker (X) Actuator selected

    L - Matt Body/Bezel L

    Q - Gloss Body/Bezel Q

    R - Matt Body/Bezel R

    T - Matt Body/Bezel T

  • Finish



    Select

    5

    Actuator and Body/Bezel available in Gloss or Matt Finish. Must select options with the same Finish for both Actuator and Body/Bezel before selecting matching Finish option

    G - Gloss Finish

    Must select if both Actuator and Body/Bezel selections are Gloss finish

    M - Matt Finish

    Must select if both Actuator and Body/Bezel selections are Matt finish

  • Body Colour



    Select

    6

    B - Black

    W - White

  • Actuator Colour



    Select

    7

    Options available for all Switching selections

    R - Red/Red Illuminated

    For all Switching and 0480 Series Indicator selections

    Options available for non-Illuminated Switching (all but 1353, 1553 Series and 0480 Series Indicator) selections only

    B - Black

    W - White

    Only available when non-Illuminated Switching (all but 1353, 1553 Series and 0480 Series Indicator) selected

    Options available for Illuminated Switching (1353, 1553 Series and 0480 Series Indicator) selections only

    A - Amber Illuminated

    C - Clear Illuminated

    G - Green Illuminated

  • Insert Colour



    Select

    8

    Select (Not Applicable) unless Matt Two Colour Curved Rocker (X) Actuator selected when Insert Colour must be selected

    (Not Applicable)

    Must select if Matt Two Colour Curved Rocker (X) Actuator not selected

    R - Red

    Required when Matt Two Colour Curved Rocker (X) Actuator selected

    W - White

    Required when Matt Two Colour Curved Rocker (X) Actuator selected

  • Illumination



    Select

    9

    Select (Not Applicable) unless Illuminated Switching (1353, 1553 Series) or 0480 Series Indicator selected when Illumination must be selected

    (Not Applicable)

    Must select unless Illuminated Switching (1353, 1553 Series) or 0480 Series Indicator selected

    2 - 125V Neon

    3 - 250V Neon

    5 - 12VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    6 - 24VDC LED

    Only available when Softline Rocker With Illuminated Dot (P) Actuator selected

    7 - 12V Filament

    8 - 24V Filament

  • Legend



    Select

    10

    Select Blank/Not Applicable if 0480 Series Indicator selected, otherwise Legend can optionally be selected

    Blank/Not Applicable

    No Legend required, or not available

    602A - EN602A - O I Vertical

    Must select Legend Colour

    730 - EN730 - II O I Vertical

    Must select Legend Colour

    822 - EN822 - Fan

    Must select Legend Colour

  • Legend Colour



    Select

    11

    Select (Not Applicable) unless Legend selected when Legend Colour must be selected

    (Not Applicable)

    No Legend Colour required - no Legend selected

    B - Black

    Required when a Legend is selected

    W - White

    Required when a Legend is selected

  • Cover



    Select

    12

    None/Not Applicable

    No cover required or no cover available for selected Body/Bezel

    G74 - Single Contact Body Size Snap On Cover

    Available only when Matt/Gloss Body/Bezel A, Matt Body/Bezel L, Matt/Gloss Body/Bezel Q, Matt Body/Bezel T selected

  • BioCote



    Select

    13

    No BioCote

    Without BioCote Antimicrobial Additive

    B - With BioCote

    Moulded components have BioCote additive with antimicrobial properties using BioCote silver ion technology
