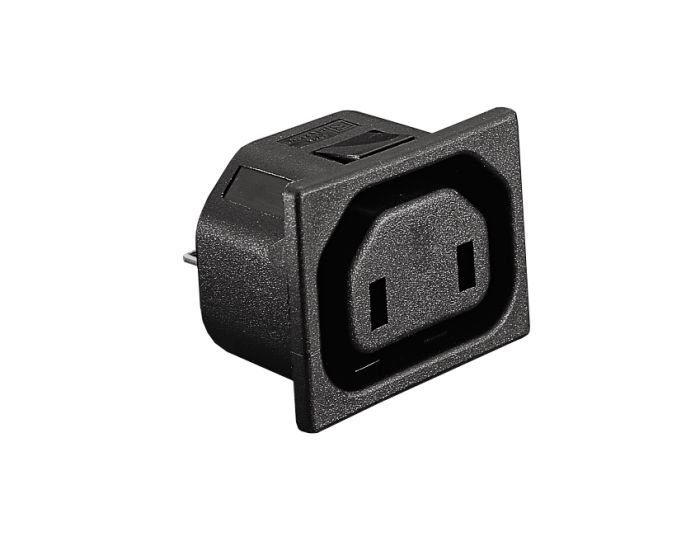

2 Pin Snap Fit IEC Panel Mount Sheet H Power Outlet / 320

PX0725 Series

    • Snap Fit To Panel Mount IEC Outlets
    • EN60 320-2-2 Standard Sheet H Class II
    • Two Pin Class II (no Earth pin)
    • Choice of panel thickness depending on part code: /10 - 1mm, /15 - 1.5mm, /20 - 2mm, /30 - 3mm
    • Choice of Termination depending on part code: /28 - 2.8mm Solder Tag, /48 - 4.8mm Tab, /63 - 6.3mm Tab
    • Choice of colour depending on part code: /WH - White, /GY - Grey, no suffix - Black (some approvals apply to specific colour and/or Termination choices only - see data for details)
    • Insulation Boot for rear of connector available separately (part code 12075)
Product Downloads Product Certificates

Configure this product using product options below and find a distributor
