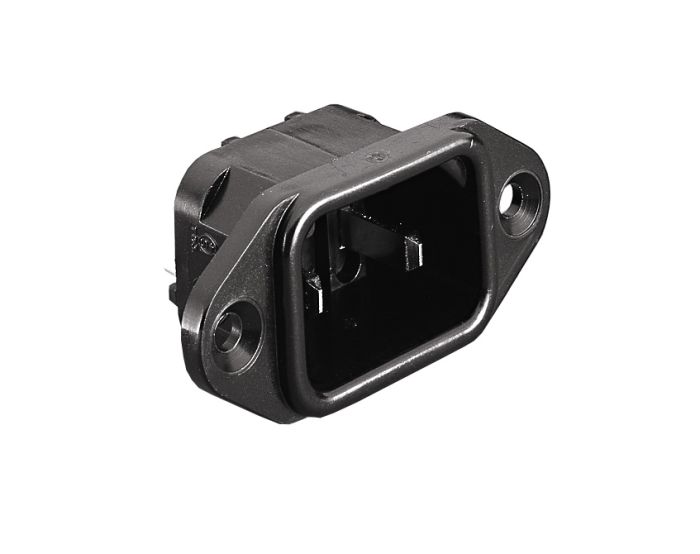

2 Pin IEC Flange Mount Inlet / 320 C18

PX0690 Series

    • Flange Mount IEC Inlets
    • EN60 320-1 Standard Sheet C18 Class II
    • Cold Condition
    • Two Pin Class II (no Earth pin)
    • Choice of Termination depending on part code: /28 - 2.8mm Solder Tag, /48 - 4.8mm Tab, /63 - 6.3mm Tab, /TERM - Screw Terminal
    • Choice of colour depending on part code: /WH - White, /GY - Grey, no suffix - Black (some approvals apply to specific colours only - see data for details)
    • Insulation Boot for rear of connector available separately (part code 11328)
    • Retaining Clip KT0006 available separately to prevent accidental removal of mating connector (for use with PX0587 Female Connector only)
    • Mate with PX0587, PX0587/SE, PX0588
